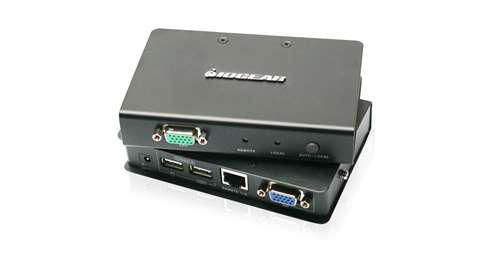

IOGEAR GCE500U USB KVM Console Extender GCE500U

The IOGEAR USB VGA KVM Console Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via CAT5e/6 cable up to 500 feet away.
This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter. It is also useful for security and monitoring purposes; you can place the unit in a secure area at the same time that you put the console in the most convenient location for user access and monitoring.
An USB VGA KVM Console Extender is a cost effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.

- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Dual Console Operation - Control your system from either the local or remote console
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to: 1920 x 1200 @ 60Hz (100 ft. - 30m), 1600 x 1200 @ 60HZ (330 ft. - 100m), 1280 x 1024 @ 60Hz (500 ft. - 150m)
- USB over-current detection and prevention
- Easy To Operate - Push button selection between local and remote console
- Local monitor supports DDC; DDC2; DDC2B
- Rack Mountable (rack mount kit included)
- Plug-N-Play - No need for any software driver installation

Features



Cable types supported



Cat5e


LED indicators



Yes


Maximum resolution



1920 x 1200 Pixels


Maximum transfer distance



150 m


Product colour



Black


Type



AV transmitter


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions (verified)



Depth Verified



17.6 cm


Gross Weight Verified



1.472 kg


Height Verified



10.5 cm


Width Verified



28.5 cm


Packaging content



Manual



Yes


Packaging data



Package dimensions (WxDxH)



285.7 x 101.6 x 177.8 mm


Ports & interfaces



DC-in jack



Yes


RJ-45 input ports



1


VGA (D-Sub) input ports



1


Power



Current



0.94 A


External power adapter



Yes


Operating voltage



5.3 V


Product dimensions



Net Weight (Product, kg)



1.47 kg


Vendor information



Brand Name


IOGEAR


Homepage



http://www.iogear.com


Warranty



3 Year(s)


Weight & dimensions



Dimensions (WxDxH)



127 x 85.7 x 25.4 mm
