IOGEAR GCS1784DPKIT 4-Port Dual-Link GCS1784DPKIT

4-Port Dual-Link DVI and DisplayPort KVMP with 7.1 Audio
IOGEAR's 4-port Dual-Link DVI and DisplayPort KVMP switch with 7.1 audio offers complete flexibility with your Dual-Link DVI and DisplayPort connections. Take full advantage of the included active DisplayPort adapters. Control and switch between DisplayPort and Dual-Link DVI computers. Take control of four computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console.

Control, Switch and Share
Switching between computers can be done in two convenient ways: front panel pushbutton andhotkey combination. The integrated 4-port USB 2.0 hub allows peripheral expansion, minimizing the need to purchase an extra USB hub.

High Video Resolution Solution up to 4K
The 4-Port Dual-Link DVI and DisplayPort KVMP switch supports high-end 3D graphics (NVIDIA� 3D Vision Ready) and is compatible with most gaming keyboards. With a 4K source and compatible 4K HDMI monitor, connecting your DisplayPort computers with the included adapters is the perfect application where ultra-high video resolution is required:- CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
- Desktop Publishing / Graphic Design / Video Editing
- Medical / Surgical / Diagnostic Displays
- High-end gaming, where ultra-high video resolution is demanded

7.1 Surround Sound
This Dual-Link DVI and DisplayPort KVM switch comes ready with 7.1 audio support, allowing audiophiles to enjoy the upgraded 7.1 surround sound experience. Complete your full audio experience by connecting a full surround sound setup in your entertainment environment. With high video resolution and high audio resolution, this will satisfy any A/V enthusiast or professional.

Out-of-Box Solution

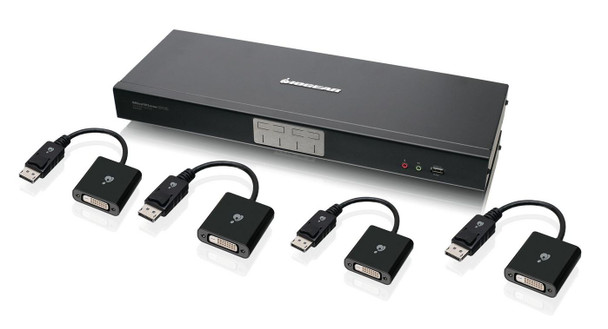

IOGEAR's 4-Port Dual-Link and DisplayPort KVMP Switch Kit with 7.1 Audio is the complete solution package you need for your computer switching setups. Whether you need connection for Dual-Link DVI, DisplayPort, or a combination between the two, this Dual-Link DVI and DisplayPort KVM kit offers a true out-of-box solution for your connectivity needs.

Design



Hot keys



Yes


Housing material



Metal


LED indicators



Y, Yes


Product colour



Black


Push button



Yes


Display



Built-in display



No


Logistics data



Master (outer) case gross weight



20 kg


Master (outer) case height



27.31 cm


Master (outer) case length



64.77 cm


Master (outer) case width



58.12 cm


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



20.96 cm


Gross Weight (Package, kg)



1.9 kg


Height (package,cm)



24.46 cm


Width (package,cm)



56.21 cm


Packaging content



AC adapter included



Yes


Cables included



Audio (3.5mm), DVI


Quick installation guide



Yes


Performance



HD type



4K Ultra HD


Maximum resolution



3840 x 2160 Pixels


Plug and Play



Yes


Scan interval



1, 99


Ports & interfaces



Audio connections



Yes


Console ports



3.5mm headphone, 3.5mm mic, DVI-I


Console USB ports quantity



2


DC-in jack



Yes


DVI-I ports quantity



4


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



4


Number of microphone inputs



2


USB 2.0 Type-B ports quantity



4


USB connector type



USB Type-A, USB Type-B


Video port type



DVI/DisplayPort


Power



DC input voltage



5.3 V


Input current



2.4 A


Product dimensions



Net Weight (Product, kg)



1.66 kg


Product Depth



5.72 cm


Product Height



43.18 cm


Product Width



15.56 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Other operating systems supported



Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 8, Solaris 9, Solaris 9 SPARC


Windows operating systems supported



Windows 10, Windows 7, Windows 8, Windows 8.1


Vendor information



Brand Name


IOGEAR


Warranty



3 Year(s)
