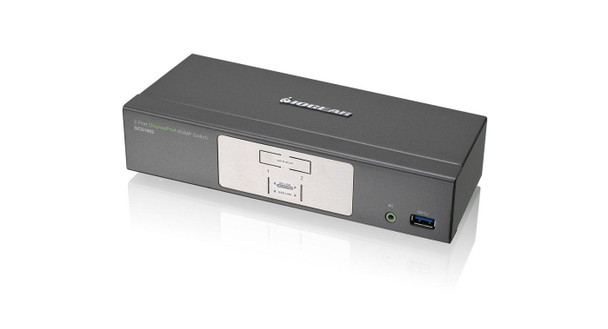

IOGEAR GCS1902 2-Port DisplayPort KVMP GCS1902

2-Port DisplayPort KVMP Switch
IOGEAR's 2-Port DisplayPort KVMP Switch features the most affordable combination of 4K UHD resolution, the next generation USB3.0 hub, and enhanced user-friendly operation. Experience 3840x2160 @ 30Hz resolution while switching between two computers and share two USB peripherals with the push of a button. Control two DisplayPort computers with ease using a single keyboard, mouse, and DisplayPort monitor. Expand your USB 3.0 peripherals connectivity with faster data transfer rates and eliminate redundant hardware.

4K UHD Experience
The DisplayPort 1.1 KVMP technology delivers up to 4K UHD resolution; 3840x2160 @ 30Hz frame rate. This 2-Port KVMP switch is designed for environments requiring 4K resolution, such as professional film and video production industries. The IOGEAR DisplayPort KVMP switch also enhances professional applications in motion graphic design, animation, engineering, architecture, and media design.

Convenient Switching Methods
Switch and access two DisplayPort computers from a simple pushbutton on the front panel or hotkeys combination on your keyboard. IOGEAR's 2-Port DisplayPort KVMP Switch also offers the latest mouse port-switching functionality to change ports. Easily switch between connected computers by clicking the wheel button on your 3-button USB mouse.

Smart Connectivity
Additional smart connectivity features turn your workstation into a convenient and easy-to-use Plug-N-Play setup. The Power on Detection feature ensures that this KVMP will automatically connect to the next powered on computer. The built in USB3.0 ports allows connectivity of up to SuperSpeed 5Gbps data transfer speeds and provides backwards compatibility with USB 2.0 and USB 1.1 legacy devices.

Cost Effective Solution
Avoid unplugging and plugging USB peripherals and audio devices between your two computers. Share your peripherals with the push of a button and forget about purchasing additional keyboards, mice, monitors, hard drives, flash drives, printers and more. Additionally, straight forward firmware update eliminates the need to purchase upgraded KVMP switches.

- Control 2 computers using a single keyboard, mouse, and DisplayPort video console
- Superior video quality � 4K UHD (3840x2160 @ 30Hz)
- DisplayPort 1.1 compliant & HDCP compliant
- 2-Port USB 3.0 Hub with SuperSpeed 5Gbps transfer rate
- Dual-Mode DP supports HDMI and DVI output1
- Computer selection via front panel pushbuttons, hotkeys, and mouse2
- Independent switching of the KVM, USB, and audio
- Supports HD audio through DisplayPort3
- Full bass response for high quality 2.1 channel audio
- Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support � Windows�7, Windows�8.1, Windows�10, Mac�, and Linux�
- Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
- Mac� keyboard support and emulation4
- Auto Scan Mode to monitor all computers
- Power On Detection
- Hot pluggable
- Firmware Upgradable

Design



Product colour



Black


Display



Built-in display



No


Network



Ethernet LAN



No


Package dimensions



Depth (package,cm)



10.16 cm


Gross Weight (Package, kg)



1.6 kg


Height (package,cm)



17.3 cm


Width (package,cm)



28.58 cm


Performance



Hot-Plug support



Yes


Maximum resolution



3840 x 2160 Pixels


Plug and Play



Yes


Ports & interfaces



Console ports



DisplayPort, USB A


Console USB ports quantity



2


DC-in jack



Yes


HDCP



Yes


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity



2


USB connector type



USB Type-A, USB Type-B


Video port type



DisplayPort


Product dimensions



Net Weight (Product, kg)



0.66 kg


Product Depth



4.29 cm


Product Height



7.47 cm


Product Width



20 cm


Vendor information



Brand Name


IOGEAR


Warranty



3 Year(s)
