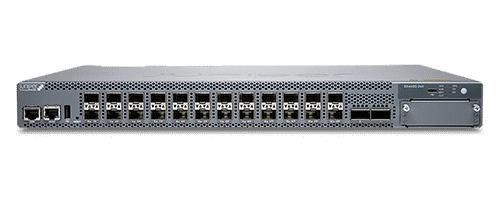

Juniper EX4400-24X 24x10GbaseX switch with EX4400-24X

The EX4400-24X is a compact, scalable, 10GbE switch ideal for enterprise campus distribution deployments. The AI-driven, cloud-native switch offers leading-edge technologies, including EVPN-VXLAN for building advanced campus fabrics and streaming telemetry for optimizing user experiences from client to cloud. It�s differentiated by features such as MACsec AES-256, microsegmentation using group-based policies, and Juniper Virtual Chassis technology.

The EX4400-24X can be deployed as a distribution switch in larger campuses or in small or medium-sized campus core networks. It�s cloud-ready and zero-touch provisioning (ZTP)-enabled, so you can onboard, configure, and manage it with Juniper Mist� Wired Assurance for improved connected-device experiences. The EX4400-24X transmits rich telemetry to the Juniper Mist cloud, while Mist AI� simplifies operations and enables actionable client-level insights in real time.

Data transmission



MAC address table



112000 entries


Number of static routes



9216


Static route



Yes


Store-and-forward



Yes


Switching capacity



1080 Gbit/s


Throughput



803 Mpps


Design



Form factor



1U


Number of fans



2 fan(s)


Product colour



Grey


Rack mounting



Yes


Redundant fans support



Yes


Management features



Quality of Service (QoS) support



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4093


Spanning tree protocol



Yes


Virtual LAN features



Policy-based VLAN, Port-based VLAN, Private VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Operating altitude



0 - 1828.8 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



6.5 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Power



Power consumption (typical)



550 Watt


Power source



AC


Product dimensions



Net Weight (Product, kg)



5.9 kg


Product Depth



43 cm


Product Height



4.37 cm


Product Width



44.17 cm


Protocols



Management protocols



SNMP: v1, v2c, v3


Routing protocols



IS-IS, OSPFv3, RIPng


Security



Access Control List (ACL)



Yes


Access Control List (ACL) ingress



2048


DHCP features



DHCP client, DHCP relay, DHCP server, DHCPv6 server


IGMP snooping



Yes


Vendor information



Brand Name


Juniper


Warranty



1 Year(s)
