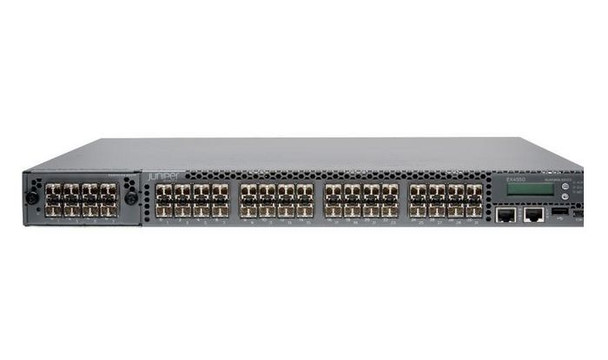

Juniper EX4550-32F-AFI-RFB 32P Switch1/10G SFP+ EX4550-32F-AFI-RFB

The scalable EX4550 Ethernet Switch offers an economical, power-efficient, high-performance platform for enterprise campus and data center top-of-rack deployments, as well as for service provider environments.

The 1 U EX4550 has 32 wire-speed GbE/10GbE ports with two expansion slots for optional modules that increase port densities to 48. The EX4550 supports Layer 3 dynamic routing protocols such as RIP and OSPF, MPLS services such as Layer 2 and Layer 3 VPNs, MACsec on all ports, and a comprehensive quality-of-service (QoS) feature set.

The EX4550 also supports Juniper�s Virtual Chassis technology and can be deployed with EX4200 Switches in the same Virtual Chassis configuration to support environments where both GbE and 10GbE servers are present.

- Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
- Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
- Wire-speed performance at high 1GbE, 10GbE and 40GbE port densities dramatically simplifies network topologies and operations.
- Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
- Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
- Virtual Chassis technology allows multiple interconnected EX4550 switches to operate as a single, logical device, reducing operational expenses and simplifying management.
- EX4550 switches can be deployed in the same Virtual Chassis configuration with EX4200 switches to support mixed 1GbE and 10GbE server environments.

Data transmission



Jumbo frames



9216


Jumbo frames support



Yes


MAC address table



32000 entries


Switching capacity



960 Gbit/s


Throughput



714 Mpps


Design



Cable management



Yes


Certification



UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS, CB-IEC60950-1


Form factor



1U


Housing material



Steel


LED indicators



System


Number of fans



3 fan(s)


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Management features



ARP inspection



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast MAC address table



4000 entries


Multicast support



Yes


Network



10G support



Yes


Auto-negotiation



Yes


Cable types supported



Fiber


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1Qbb, IEEE 802.1p


Number of VLANs



4096


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4.877 m


Operating altitude



0 - 3.048 m


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



2 kg


Packaging data



Cables included



AC


Mounting brackets included



Yes


Quick start guide



Yes


User guide



Yes


Performance



Built-in processor



Yes


Expansion module support



Yes


Firmware upgradeable



Yes


Flash memory



2048 MB


Internal memory



2048 MB


Mean time between failures (MTBF)



166000 Hour


Memory type



DRAM


Processor frequency



1200 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



32


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Console port



RJ-45


Installed SFP+ modules quantity



32


Power



Number of power supply units



1


Power consumption (typical)



175 Watt


Power supply included



Yes


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



47 cm


Product Height



4.4 cm


Product Width



44.07 cm


Security



BPDU filtering/protection



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Loop protection



Yes


Vendor information



Brand Name


Juniper


Warranty



1 Year(s)
