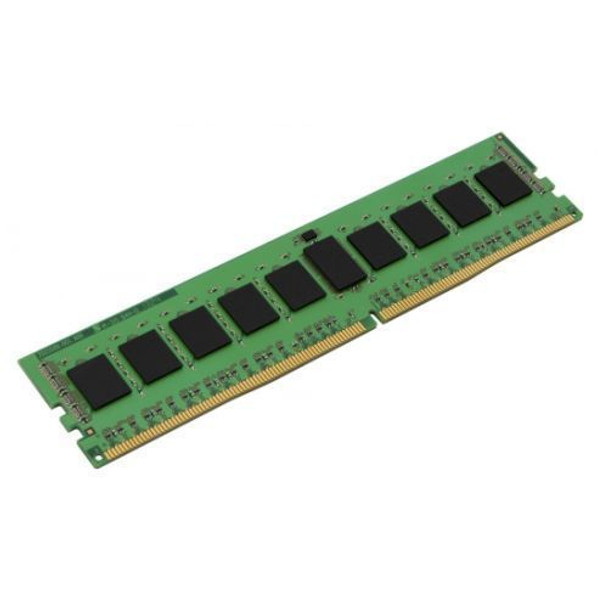

Kingston 4Gb Ddr4 2666Mhz Pc4-21300 Cl19 Dimm Memory KVR26N19S6/4

This document describes ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard  latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.


• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

DescriptionSpecification

Series: Kingston ValueRAM
DDR Type: DDR4
Size: 4GB
Speed: 2666 MHz
Compliance: PC4-21300
Pins: 288-pin
CAS Latency: CL19
Data Integrity Check: Non-ECC
Voltage: 1.2V
Timings: 19-19-19
Heatsink: No
#Hide#LED Lighting: No
Additional Information: See Overview
Package Type: Retail
Package Weight: 0.0225 kg
Warranty: Lifetime
