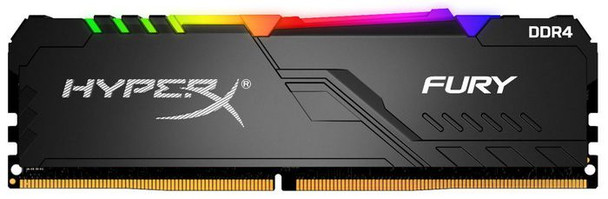

Kingston HX432C16FB4AK4/64 4/64 Memory Module 64 Gb 4 X HX432C16FB4AK4/64

HyperX HX432C16FB4AK4/64 is a kit of four 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel� Extreme Memory Profiles (Intel� XMP) 2.0. Total kit capacity is 64GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features



Backlight



Yes


Backlight colour



Red/Green/Blue


CAS latency



16


Component for



PC/Server


Cooling type



Heatsink


Intel Extreme Memory Profile (XMP)



Yes


Intel Extreme Memory Profile (XMP) version



2.0


Internal memory



64 GB


Internal memory type



DDR4


JEDEC standard



Yes


Lead plating



Gold


Memory clock speed



3200 MHz


Memory form factor



288-pin DIMM


Memory layout (modules x size)



4 x 16 GB


Memory voltage



1.35


Module configuration



2048M x 64


Programming power voltage (VPP)



2.5 V


Refresh row cycle time



350 Nanosecond


Row active time



32 Nanosecond


Row cycle time



45.75 Nanosecond


Operational conditions



Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



0.7 cm


Product Height



4.12 cm


Product Width



13.33 cm


Vendor information



Brand Name


Kingston


Warranty



1 Year(s)
