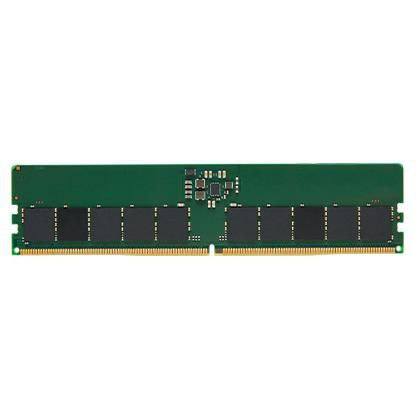

Kingston KSM56E46BS8KM-16HA 16GB DDR5-5600MT/S ECC CL46 KSM56E46BS8KM-16HA

Kingston's KSM56E46BS8KM-16HA is a 2G x 72-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features



Buffered memory type



Unregistered (unbuffered)


CAS latency



46


Component for



Server


ECC



Yes


Internal memory



16 GB


Internal memory type



DDR5


JEDEC standard



Yes


Lead plating



Gold


Memory clock speed



5600 MHz


Memory form factor



288-pin DIMM


Memory layout (modules x size)



1 x 16 GB


Memory ranking



1


Memory voltage



1.1


Module configuration



2048M x 72


On-Die ECC



Yes


Product colour



Black, Green


Programming power voltage (VPP)



1.8 V


Refresh row cycle time



295 Nanosecond


Row active time



32 Nanosecond


Row cycle time



48 Nanosecond


Row Precharge Time (TRP)



16


SPD profile



Yes


Operational conditions



Operating temperature (T-T)



0 - 95 �C


Storage temperature (T-T)



-55 - 100 �C


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Height



3.13 cm


Product Width



13.33 cm


Sustainability



Doesn't contain



Halogen


Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Kingston


Warranty



1 Year(s)
