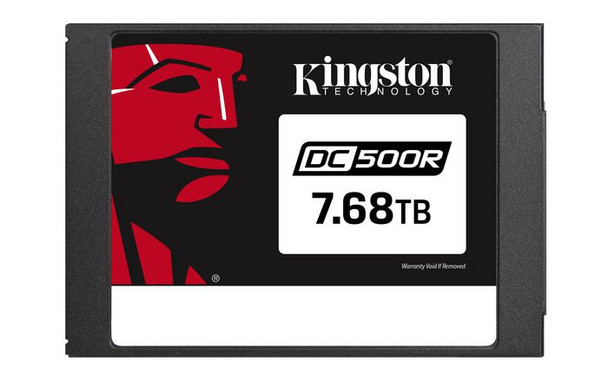

Kingston SEDC500R/7680GBK 7680GB DC500R 2.5IN SATA SSD SEDC500R/7680GBK

Performance, Reliability and Consistency

Data Centre 500 Series
Kingston's Data Centre 500 (DC500R / DC500M) series of solid-state drives are high-performance 6Gbps SATA SSDs that use the latest 3D TLC NAND, designed for read-centric and mixed-use server workloads. They implement Kingston's strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read and write workloads. They can increase productivity for AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications and data warehousing. Capacities from 480GB, 960GB, 1.92TB, 3.84TB, 7.68TB ****

Enterprise Data Centre SSD
Delivering on business demands for 24/7 uptime and reliability, Kingston Enterprise SSDs offer high-performing storage that combines predictable performance with rigorously tested reliability. Kingston's DC500 Series SSDs offer features that enable data centres to select the most cost-effective SSD for their workload(s). Businesses require results in order to deliver on products, solutions and service level agreements (SLAs). Kingston's DC500 Series SSDs are designed to deliver on these expectations.

DC500R: Read-centric SSD
DC500R is a highly optimised SSD designed for read-centric workloads, enabling data centres to select SSDs tailored for workloads without overspending on more expensive write-intensive SSDs. It delivers I/O speeds and response times (latency) that a data centre can deploy with confidence to ensure high levels of performance in the working application and downstream at the user interface. These are typically defined by applications that require real-time results. Serving large amounts of data and delivering responsive results from a variety of databases and web-based applications can leverage the receptive performance of the DC500R.

DC500M: Mixed-use SSD
DC500M is a powerful SSD designed for mixed-use workload applications where the demand has a more balanced mix of read and write operations. It delivers greater write endurance over a wide range of workloads while maintaining the strict performance consistency requirements designed into all of Kingston's data centre SSDs. Data centres that host databases and various web-based applications can leverage the predictable I/O and latency performance while controlling infrastructure costs.

End-to-end Protection
The DC500 series SSDs incorporate end-to-end data path protection to help guarantee that all user data transferred into the SSD is protected against transient errors. The DC500R and DC500M both include on-board power-loss protection (PLP) via power capacitors and firmware. This ensures data-in-flight is written to the NAND Flash memory in the event of unexpected power loss. Additionally, PLP ensures that the drives' mapping table (FTL) is updated prior to power being removed from the drive. These power loss safeguards reduce the chance of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system.

Quality of Service (QoS)
The DC500 series delivers on QoS (*,**,***) with consistency, predictability of latency (response time) and IOPS (IOs per Second) performance while servicing balanced read and write workloads. Performance predictability is essential for web hosting applications that must deliver on SLAs promised to customers. The DC500 series efficiency produces the reliability needed for web server applications that require read-centric drives or mixed-use intensive workloads where uptime is mission critical.

Application use cases
Designed for service providers running a wide range of customer applications including:Virtualisation
High-speed databases
High-bandwidth media streaming
SQL server reporting services (SSRS)
SAP
BI, ERP, CRM, GL, OLAP, OLTP, ERM and EDW workloads
Cloud service providers

Both DC500R and DC500M feature enterprise-class reliability with end-to-end data path protection, SMART health monitoring and strong ECC. They are backed by legendary pre and post-sales support along with a five-year limited warranty. *****

* Workload based on FIO, random 4KB QD=1 workload, measured as the time taken for 99.9% of commands to finish the round-trip from host to drive and to host.
** Measurement taken once the workload has reached a steady state but including all background activities required for normal operation and data reliability.
*** Based on 960GB capacity.
**** Some of the listed capacity on a Flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston�s Flash Guide at kingston.com/flashguide.
***** Limited warranty based on 5 years or SSD �Life Remaining�, which can be found using the Kingston SSD Manager (kingston.com/SSDManager). A new, unused product will show a wear indicator value of one hundred (100), whereas a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1).

Features



Component for



Server/workstation


Data transfer rate



6 Gbit/s


End-to-End Data Protection



Yes


Hardware encryption



Yes


Interface



Serial ATA III


Mean time between failures (MTBF)



2000000 Hour


Memory type



3D TLC


Power loss protection



Yes


Random read (4KB)



99 IOPS


Random write (4KB)



25 IOPS


Read latency



500 �s


Read speed



545 MB/s


S.M.A.R.T. support



Yes


Security algorithms



256-bit AES


SSD capacity



7.5 TB


SSD form factor



2.5"


TBW rating



9345


Write latency



2000 �s


Write speed



490 MB/s


Operational conditions



Non-operating vibration



20 G


Operating temperature (T-T)



0 - 70 �C


Operating vibration



2.17 G


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.77 kg


Power



Average power consumption (read)



1.45 Watt


Average power consumption (write)



4.5 Watt


Power consumption (idle)



1.3 Watt


Power consumption (max)



7.5 Watt


Power consumption (read)



1.65 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



10 cm


Product Height



0.7 cm


Product Width



6.99 cm


Vendor information



Brand Name


Kingston
