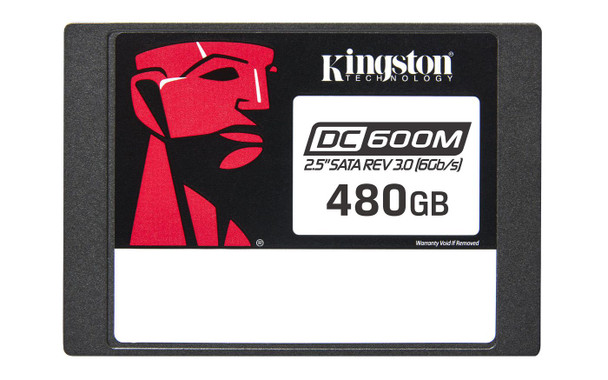

Kingston SEDC600M/480G Dc600M 2.5" 480 Gb Serial Ata SEDC600M/480G

Kingston�s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for �mixed use� workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.

Capacities available from 480GB�7680GB* to meet your data storage requirements.

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet service-level agreements (SLAs).

Capacities of up to 7680GB
Upgrade and manage storage with capacities of up to 7680GB** .

Features



Component for



Server/workstation


Data transfer rate



6 Gbit/s


H/W PLP function



Yes


Hardware encryption



Yes


Hot-Plug support



Yes


Interface



Serial ATA III


Mean time between failures (MTBF)



2000000 Hour


Memory type



3D TLC NAND


Random read (4KB)



94000 IOPS


Random write (4KB)



41000 IOPS


Read latency



200 �s


Read speed



560 MB/s


Security algorithms



256-bit AES


SSD capacity



480 GB


SSD form factor



2.5"


Target workload



Mixed Use (MU)


TBW rating



876


Use conditions



Server/Enterprise


Write latency



30 �s


Write speed



470 MB/s


Logistics data



Master (outer) case gross weight



959.95 g


Master (outer) case height



6.99 cm


Master (outer) case length



20.32 cm


Master (outer) case width



13.59 cm


Products per master (outer) case



10 pc(s)


Operational conditions



Non-operating vibration



20 G


Operating temperature (T-T)



0 - 70 �C


Operating vibration



2.17 G


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



0.91 cm


Gross Weight (Package, kg)



0.91 kg


Height (package,cm)



18.42 cm


Width (package,cm)



12.95 cm


Power



Power consumption (idle)



1.3 Watt


Power consumption (max)



1.45 Watt


Power consumption (read)



1.6 Watt


Power consumption (write)



3.6 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



10.01 cm


Product Height



7 cm


Product Width



6.99 cm


Vendor information



Brand Name


Kingston


Warranty



1 Year(s)
