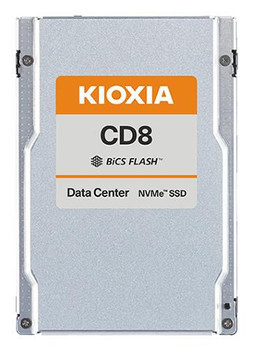

KIOXIA KCD8XRUG1T92 CD8-R 2.5" 1.92 TB PCI KCD8XRUG1T92

(No reviews yet) Write a Review
UPC:
5715063528563
MPN:
KCD8XRUG1T92
Condition:
New
Availability:
Available to Order: 3 - 4 weeks leadtime
  • KIOXIA KCD8XRUG1T92 CD8-R 2.5" 1.92 TB PCI KCD8XRUG1T92
  • KIOXIA KCD8XRUG1T92 CD8-R 2.5" 1.92 TB PCI KCD8XRUG1T92
  • KIOXIA KCD8XRUG1T92 CD8-R 2.5" 1.92 TB PCI KCD8XRUG1T92
£427.78

Description

Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Features



Component for



Server/workstation


Interface



PCI Express 4.0


Mean time between failures (MTBF)



2500000 Hour


Memory type



BiCS FLASH TLC


NVMe



Yes


NVMe version



1.4


PCI Express interface data lanes



x4


Random read (4KB)



1250000 IOPS


Random write (4KB)



150000 IOPS


Read speed



7200 MB/s


SSD capacity



2 TB


SSD form factor



2.5"


Write speed



3500 MB/s


Operational conditions



Maximum operating temperature



74 °C


Operating relative humidity (H-H)



5 - 95 %


Operating shock



1 kg


Operating temperature (T-T)



0 - 74 °C


Operating vibration



2.17 G


Storage temperature (T-T)



-40 - 85 °C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



12 V


Power consumption (max)



13 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



10.04 cm


Product Height



1.5 cm


Product Width



6.98 cm


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


KIOXIA


Warranty



1 Year(s)
