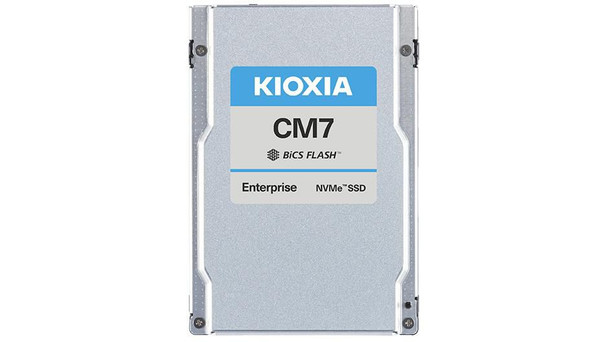

KIOXIA KCMYXRUG7T68 CM7-R 2.5" 7.68 TB PCI KCMYXRUG7T68

KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe� 5.0 (for U.3 host: PCIe� 4.0) and NVMe� 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH� 3D TLC flash memory, the CM7-R Series of enterprise NVMe� SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read-intensive enterprise applications.

Features



Component for



Server/workstation


Interface



PCI Express 5.0


Mean time between failures (MTBF)



2500000 Hour


Memory type



BiCS FLASH TLC


NVMe



Yes


NVMe version



2.0


PCI Express interface data lanes



x4


Random read (4KB)



2450000 IOPS


Random write (4KB)



300000 IOPS


Read speed



14000 MB/s


SSD capacity



7.5 TB


SSD form factor



2.5"


Write speed



6750 MB/s


Operational conditions



Maximum operating temperature



73 �C


Operating relative humidity (H-H)



5 - 95 %


Operating shock



1 kg


Operating temperature (T-T)



0 - 73 �C


Operating vibration



2.17 G


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



12 V


Power consumption (max)



25 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



10.04 cm


Product Height



1.5 cm


Product Width



6.98 cm


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


KIOXIA


Warranty



1 Year(s)
