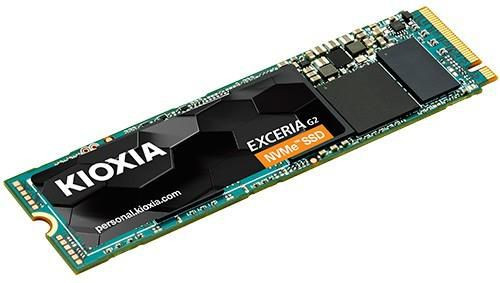

KIOXIA LRC20Z001TG8 Exceria G2 M.2 1000 Gb Pci LRC20Z001TG8

Performance Made Affordable

The KIOXIA EXCERIA SSD series redefines mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs, the EXCERIA G2 SSD series delivers balanced performance and value that will transform your system.

Small and Compact for an Easy Upgrade

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

NVMe™ Technology

Why keep using an interface that was designed for hard drives? Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Features



Component for



Notebook


Data transfer rate



32 Gbit/s


Interface



PCI Express 3.1a


Mean time between failures (MTBF)



1500000 Hour


Memory type



BiCS FLASH TLC


NVMe



Yes


NVMe version



1.3c


Random read (4KB)



400000 IOPS


Random write (4KB)



400000 IOPS


Read speed



2100 MB/s


SSD capacity



1 TB


SSD form factor



M.2


Write speed



1700 MB/s


Operational conditions



Operating temperature (T-T)



0 - 85 °C


Storage temperature (T-T)



-40 - 85 °C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



3.3 V


Power consumption (max)



3.5 Watt


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



0.22 cm


Product Height



2.21 cm


Product Width



8.02 cm


Vendor information



Brand Name


KIOXIA


Warranty



1 Year(s)
