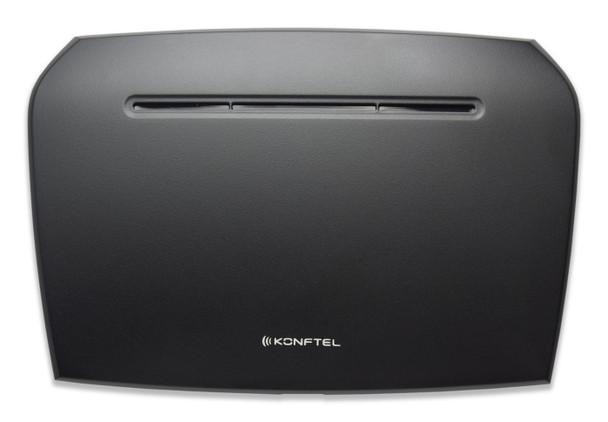

Konftel 900102132 IP DECT 10 900102132

Wireless IP meetings with powerful audio

Freedom of wireless connectivity combined with superior audio quality. That's what
you get from the Konftel 300Wx when it's connected to IP telephony with HD audio
via Konftel IP DECT 10. Give your conference calls all the dynamism they deserve!
HD audio produces much more natural-sounding speech than the sound you get with
conventional phone calls. It picks up tones of voice and nuances, making conversa-
tion more fluid.
It is now possible to take the HD calls on your IP telephony into wireless conference
calls. Konftel's DECT base station, IP DECT 10, is connected via SIP and can have up
to 5HD-capable Konftel 300Wxs registered and four simultaneous calls.
It is possible to set up the Konftel 300Wx with IP DECT base stations provided by
third-party manufacturers supported by Konftel. However, Konftel IP DECT 10 offers
some unique advantages and makes it simple to get started.

KONFTEL IP DECT 10 AND THE
KONFTEL 300Wx OFFER THE
FOLLOWING ADVANTAGES

- The solution supports HD voice
- over IP
- Uses the conference phone's power-
- ful audio qualities that are based on
- Konftel's patented OmniSound � audio
- technology
- Easy registration
- The freedom of wireless connectivity
- for your conference calls

- SIP to the company's IP PBX, CPE-based or cloud-based.
- Can have up to 5 Konftel 300Wxs registered.
- Easy registration.
- Up to 50 metres of wireless range indoors.
- Wireless HD audio using CAT-iq and G.722 codec.
- Up to five calls simultaneously.
- Konftel IP DECT 10 comes with an EU power adapter.

Call management



Conference call



Yes


Design



Certification



EMC: 2014/30/EU, EMC Regulations 2016, RED: 2014/53/EU, LVD: 2014/35/EU, WEEE: 2012/19/EC, RoHS: 2011/65/EU, REACH: EC 1907/2006


Product colour



Black


Logistics data



Harmonized System (HS) code



85177900


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



3.2 cm


Gross Weight (Package, kg)



0.33 kg


Height (package,cm)



11.8 cm


Width (package,cm)



17.7 cm


Packaging content



Power adapter included



Yes


Performance



Harmonized System (HS) code



85177900


Maximum range



300 m


Number of carrier frequencies



10


Number of handsets supported (max)



20


Voice codecs



G.711, G.722, G.726, G.729


Ports & interfaces



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Power



Input voltage



100 - 240 V


Output voltage



5 V


Power consumption (typical)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.3 kg


Technical details



Sustainability certificates



Low Voltage Directive (LVD), REACH, RoHS, WEEE


Vendor information



Brand Name


Konftel


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



118 x 177 x 32 mm
