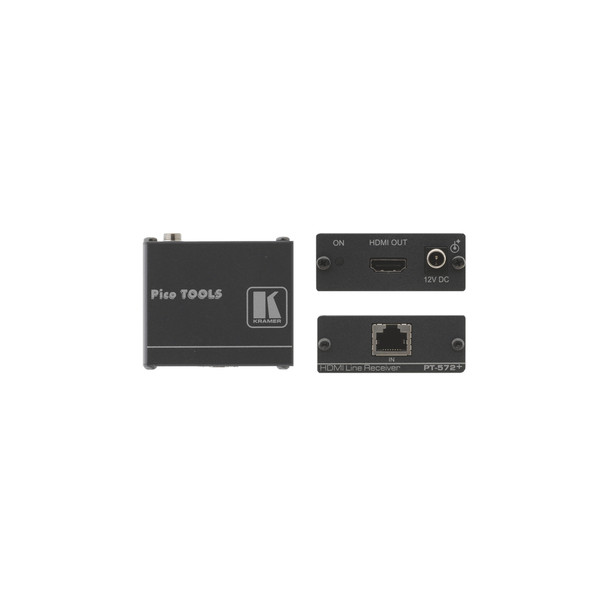

Kramer Electronics HDMI HDCP 2.2 Compact Receiver over PoC Long-Reach DGKat PT-572+

The PT?572+ is a DGKat� twisted pair receiver for HDMI signals. The PT?571 converts an HDMI signal to a single twisted pair signal and the PT?572+ converts the twisted pair signal back to an HDMI signal.

- Max. Data Rate - 1.65Gbps.
- HDTV Compatible.
- HDCP Compliant.
- DGKat� Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat� cables designed specifically for optimum performance.
- HDMI Support - HDMI (V.1.4 with 3D, Deep Color, x.v.Color�, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
- 3D Pass-Through.
- System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
- Cable - Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- EDID PassThru - Passes EDID signals between the source and display.
- Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
- Power Connect� System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
- Ultra-Compact Pico TOOLS� - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

Features


Requires Shielded Twisted Pair Cable


Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)


Size - Pico TOOLS - Mount 4 units side-by-side in a 1U rack space with the optional RK-4PT rack adaptor


Audio - E



Weight & dimensions


Weight

140 g


Dimensions (WxDxH)

62 x 52 x 24 mm



Features


Type

AV receiver


Bandwidth

1.65 Gbit/s


Product colour

Black


Supported video modes

1080i, 1080p



Ports & interfaces


RJ-45 input ports

1


DC-in jack

Yes


Number of HDMI outputs

1
