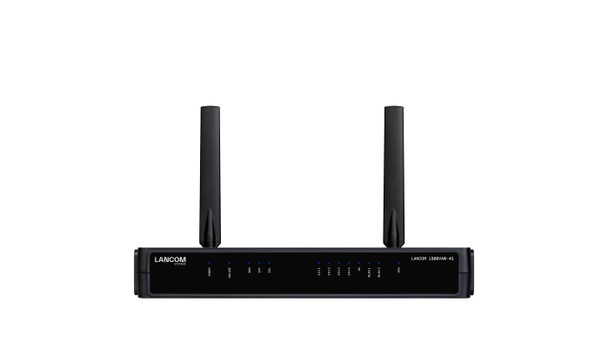

Lancom Systems 62147 SD-WAN gateway with 62147

At company sites and branch offices with business-critical applications, a fast and at the same time highly available connection to the Internet is essential. The SD-WAN gateway LANCOM 1800VAW-4G offers flexible interface diversity with VDSL and fiber optics, and its additional 4G connectivity ensures reliable Internet backup in the event of a wired line failure. Complemented by high-performance dual-band concurrent Wi-Fi 6, mobile devices are also connected by radio. Automated network management in combination with the LANCOM Management Cloud (LMC) enables the LANCOM 1800VAW-4G to save valuable resources such as time and costs.

LANCOM SD-WAN � Next-level networking
With LANCOM SD-WAN you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway gives you all the options for an automated setup of secure VPN connections (Auto-VPN) between sites, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you a significant plus in scalability and efficiency for a large number of branches and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the available total bandwidth. With Dynamic Path Selection and Dynamic Traffic Steering, applications are also dynamically routed via the best connection at any given time.

WAN connectivity with VDSL Supervectoring
The LANCOM 1800VAW-4G offers full VDSL Supervectoring support and is also backwards compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines. Alternatively, the LANCOM 1800VAW-4G is ideal for intelligent backup scenarios to protect business-critical applications thanks to its 4G modem (Cat. 6) with 300 Mbps LTE-Advanced. High availability and speed make the branch router ideally suited for transferring data within the company network or to external cloud services.

Professional integration of wireless clients via Wi-Fi 6
The LANCOM 1800VAW-4G offers wireless LAN in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously integrate clients in the 2.4 GHz frequency band as well as modern end devices in the 5 GHz band into the network and supply them with fast Wi-Fi. The dual-band concurrent Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in 5 GHz and up to 575 Mbps in 2.4 GHz in parallel.

Modern housing with focus on sustainability
Innovative technology meets forward-looking optics: the combination of matte black plastic and mirror-like acrylic glass front panel for interface information conveys a tangible feeling of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to possible table, rack, and wall mounting. Local production ensures short procurement routes with low CO2 emissions and thus scores particularly well in terms of sustainability.

Security with ARF, VLAN, and inspection firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with functions such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights according to the requirements of the user groups, and to divide your infrastructures and applications into different areas. This network segmentation using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network) ensures that your enterprise network as a whole remains protected, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPN), you use the public medium of the Internet as a communication path and secure the connection in such a way that the communication still remains completely inaccessible to external parties. This SD-WAN gateway offers you five integrated IPSec VPN channels for secure encryption, so that the protection of internal company data is always guaranteed when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, so that the infrastructure can easily grow with your needs without additional hardware.

Future-proofing and digital sovereignty "Made in Germany"
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and know-how "Made in Germany". Software and hardware development as well as production take place primarily in Germany, as does the hosting of the network management. Special attention is given to providing trusted solutions with outstanding security features. Another important security characteristic of the products is that they are free from backdoors, as awarded by the German Federal Ministry of Economy with the quality seal �IT Security made in Germany�. All devices are always equipped with with hardware that is dimensioned for the future. Even across product generations, updates to the LANCOM operating system family are available several times a year, free of charge. his guarantees a long service life while staying technically up to date, which represents a true protection of your investment. In addition, LANCOM infrastructures are easily scalable thanks to maximum compatibility.

Design



Product colour



Black


Features



Antenna connector type



SMA


Antenna gain level (max)



2 dBi


Antenna type



External


Antennas quantity



2


Management features



DHCPv6 snooping



Yes


IGMP snooping



Yes


Multicast Listener Discovery (MLD) snooping



Y


Quality of Service (QoS) support



Yes


Reset button



Yes


Syslog



Yes


Traffic shaping



Yes


Network



3G standards



HSPA, UMTS


4G bands supported



700, 800, 900, 1500, 1800, 2100, 2300, 2500, 2600, 3600


4G standard



LTE


Band steering



Yes


Dynamic DNS (DDNS)



Yes


Ethernet LAN data rates



10, 100, 1000


Frequency band



2.4/5 GHz


Load balancing



Yes


Mobile network generation



4G


Modulation



256-QAM, 1024-QAM


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x


PPTP/L2TP VPN tunnels (max)



25


UMTS bands supported



700, 800, 900, 1800, 2100, 2500, 2600


Wi-Fi



Yes


WLAN data transfer rates supported



1, 2, 5.5, 6, 9, 11, 18, 24, 36, 54, 300, 574, 867, 1200


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



11 cm


Height (package,cm)



32 cm


Width (package,cm)



21 cm


Packaging content



AC adapter included



Yes


Cables included



DSL, LAN (RJ-45)


Manual



Yes


Performance



Control display unit



No


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



5


SIM card slot



Yes


SIM card type



MicroSIM


USB 2.0 ports quantity



1


WAN connection



Ethernet (RJ-45), SFP


Power



Power consumption (max)



36 Watt


Product dimensions



Net Weight (Product, kg)



1.493 kg


Product Depth



19 cm


Product Height



4.4 cm


Product Width



29.3 cm


Protocols



DHCP client



Yes


DHCP server



Yes


Routing protocols



BGP4, LISP, OSPFv2, RIP-2, VRRP


Security



Access Control List (ACL)



Yes


Authentication method



PAP, CHAP, MS-CHAP, MS-CHAPv2


MAC address filtering



Yes


Security algorithms



802.1x RADIUS, AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-TLS, EAP-TTLS, MSCHAPv2, TKIP, WEP, WPA, WPA2-Enterprise, WPA3, WPA3-Enterprise


VLAN support



Yes


Sustainability



Sustainability certificates



CE


Sustainability compliance



Yes


Vendor information



Brand Name


Lancom Systems


Warranty



3 Year(s)
