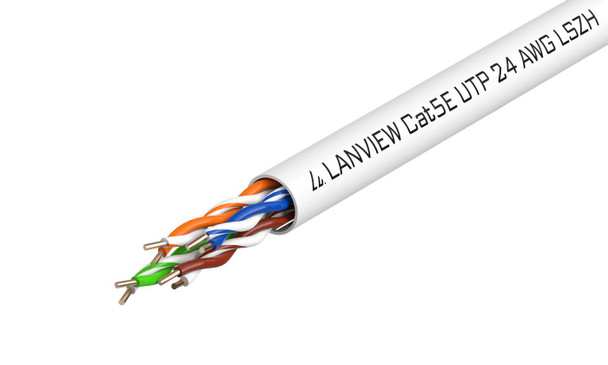

Lanview LVN122014 Cat5e U-UTP Network Cable LVN122014

Used in structured cabling systems. Conforms to the Category 5e networking standard and is ideally suited for indoor use, Fast Ethernet, voice, data, video and multimedia applications. This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.



There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.



Lanview Cat5e Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.

Features



AWG wire size



24


Cable class



Eca


Cable length



305 m


Cable shape



Round


Cable shielding



U/UTP (UTP)


Cable standard



Cat5e


Conductor material



Copper


Conductor type



Solid


Connector 1



Open end


Connector 2



Open end


Data transfer rate



10000 Mbit/s


Ethernet interface type



10 Gigabit Ethernet


Frequency



100 MHz


Halogen-free



Yes


Harmonized System (HS) code



84733080


Jacket material



Low smoke zero halogen (LSZH)


Product colour



White


RoHS compliance



Yes


Package dimensions



Depth (package,cm)



34.5 cm


Gross Weight (Package, kg)



9.2 kg


Height (package,cm)



34.5 cm


Width (package,cm)



19.5 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



8.3 kg


Product Depth



34.5 cm


Product Height



34.5 cm


Product Width



19.5 cm


Vendor information



Brand Name


Lanview


Warranty



25 Year(s)


Weight & dimensions



Outer diameter



5 mm
