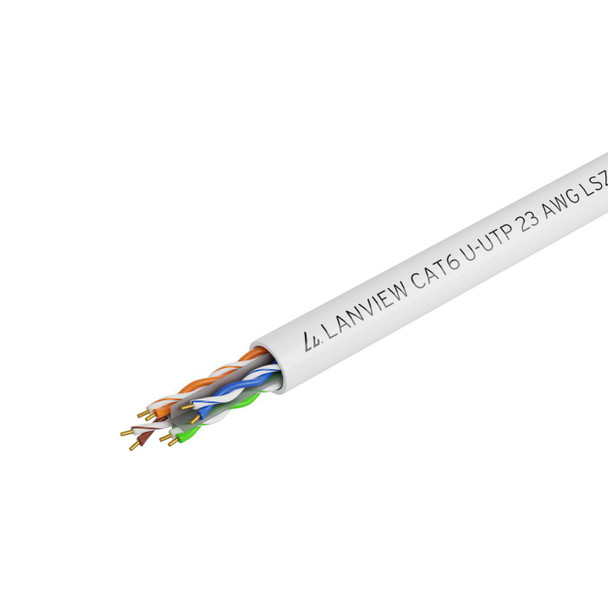

Lanview LVN122114 Cat6 U-UTP Network Cable LVN122114

Used in structured cabling systems. For transmission of telecommunications and high speed data.



Lanview Cat6 Unshielded LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.

Features



AWG wire size



23


Cable class



B2ca


Cable length



305 m


Cable shape



Round


Cable shielding



U/UTP (UTP)


Cable standard



Cat6


Conductor material



Copper


Conductor type



Solid


Connector 1



Open end


Connector 2



Open end


Data transfer rate



10000 Mbit/s


Ethernet interface type



10 Gigabit Ethernet


Frequency



250 MHz


Halogen-free



Yes


Harmonized System (HS) code



84733080


Jacket material



Low smoke zero halogen (LSZH)


Product colour



White


RoHS compliance



Yes


Package dimensions



Depth (package,cm)



39.5 cm


Gross Weight (Package, kg)



13 kg


Height (package,cm)



39.5 cm


Width (package,cm)



23 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



12 kg


Product Depth



39.5 cm


Product Height



39.5 cm


Product Width



23 cm


Vendor information



Brand Name


Lanview


Warranty



25 Year(s)


Weight & dimensions



Outer diameter



6.3 mm
