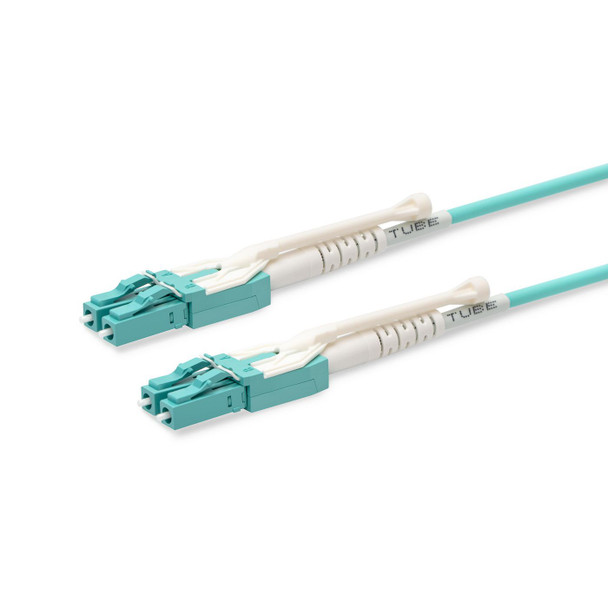

Lanview LVO231820UNI LC-LC Uniboot Multimode fibre LVO231820UNI

This Uniboot cable comes with a lot of great features to take your networking setup to the next level, Uniboot cables comes with both the fibre leads coated in a single jacket, meaning there is more room for airflow in the rack. This also means the insertion loss is low.

Another special feature of the Uniboot cable is the option to switch polarities, simply remove the top cover and you can swap the connectors to change the polarity, no need to swap to another cable with Uniboot.

This cable lives up to the OM4 fibre standard to connect to high speed and legacy networks like 10/40/100 gigabit. This cable standard is ideal for for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc.

The cable is made of LSZH material to live up to Telecordia, EIA TIA or IEC standards.

Features



Cable length



15 m


Cable type



Duplex


Certification



Rohs


Cladding diameter



125 �m


Connector 1



LC/UPC


Connector 1 gender



Male


Connector 2



LC/UPC


Connector 2 gender



Male


Connector gender



Male/Male


Ethernet interface type



10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Fiber mode structure



Multi-mode


Fibre optic type



OM4


Full duplex



Yes


Halogen-free



Yes


Insertion loss



0.18 dB


Jacket material



Low smoke zero halogen (LSZH)


Plug and Play



Yes


Product colour



Blue


Wavelengths supported



850, 1300


Package dimensions



Depth (package,cm)



8 cm


Gross Weight (Package, kg)



0.035 kg


Height (package,cm)



15 cm


Width (package,cm)



15 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



0.034 kg


Product Height



1500 cm


Product Width



0.3 cm


Technical details



Doesn't contain



Halogen


Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Lanview


Warranty



5 Year(s)


Weight & dimensions



Cable diameter



3 mm
