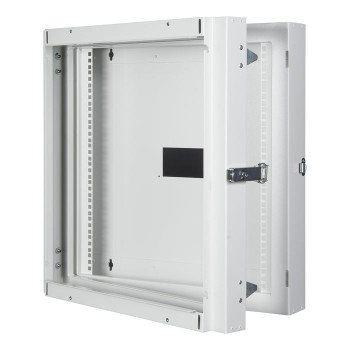

Lanview RWMD12UBL 19" 12U W=600mm D=150mm RWMD12UBL

LOGON By Lanview PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 12U

Weight(kg): 16
Product dimensions WxDxH(mm): 600x150x631
Ah Wall mounting hole gaps(mm): 522
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness. Equipments, conforming with 19" installation and of 70mm depth, may be attached inside. By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet. While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback. By this means ease of installation and maintenance is provided.

Package dimensions(mm): 655x200x655

Features



Cable entry point



Yes


Castor wheels



No


Cooling type



Passive


Frame type



Closed


International Protection (IP) code



IP20


Key lock



Yes


Material



Steel


Maximum weight capacity



80 kg


Mounting hole shape



Round


Preassembled



Yes


Product colour



Black


Rack rails



Yes


Removable back door



No


Removable side panels



No


Type



19" Double Section Module


Package dimensions



Depth (package,cm)



65 cm


Gross Weight (Package, kg)



17 kg


Height (package,cm)



15 cm


Width (package,cm)



65 cm


Product dimensions



Net Weight (Product, kg)



16 kg


Product Depth



15 cm


Product Height



63.1 cm


Product Width



60 cm


Vendor information



Brand Name


Lanview


Warranty



5 Year(s)


Weight & dimensions



Size (imperial)



19 "
