Lanview

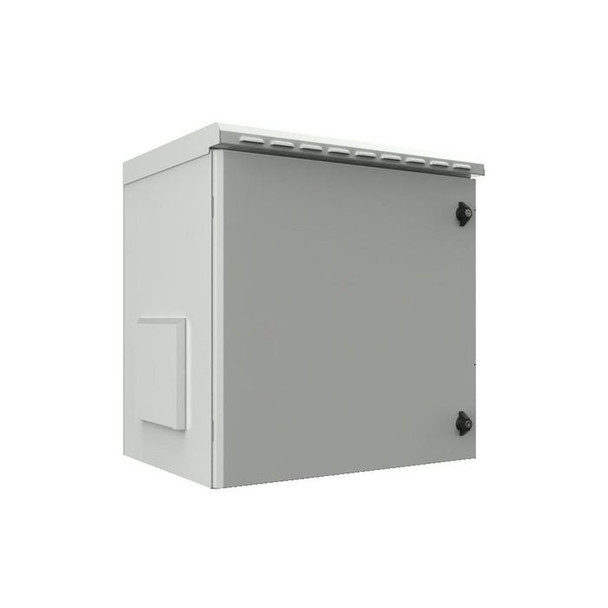

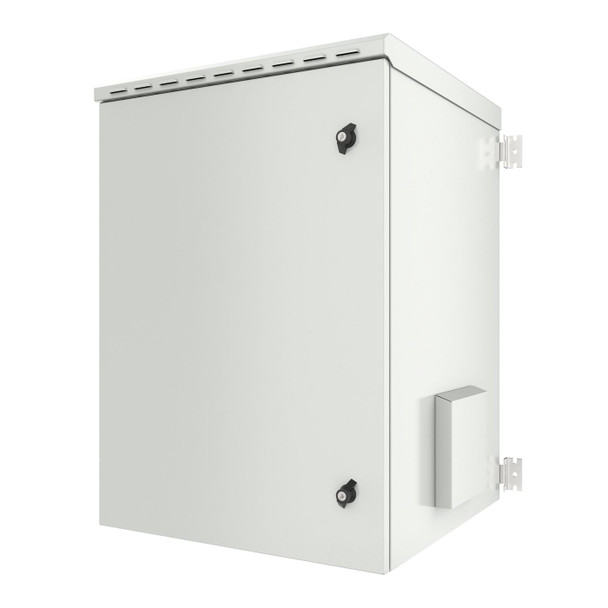

Lanview RWMIP55W16U60W 19" IP55 16U W=600mm D=600mm RWMIP55W16U60W
(No reviews yet)
Write a Review
- UPC:
- 5420016847973
- MPN:
- RWMIP55W16U60W
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Product Dimensions: 600 x 600 x 810mm
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded alminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
Features
Cable entry point
Yes
Castor wheels
No
Cooling type
Passive
Frame type
Closed
Front door construction
Steel
International Protection (IP) code
IP55
Key lock
Yes
Material
Steel
Mounting hole shape
Round
Preassembled
Yes
Product colour
White
Rack capacity
16U
Rack rails
Yes
Removable back door
No
Removable side panels
No
Type
IP55 Outdoor Rack
Other features
Dimensions (WxDxH)
600x600x810 mm
Package dimensions
Depth (package,cm)
66 cm
Gross Weight (Package, kg)
46.51 kg
Height (package,cm)
105 cm
Width (package,cm)
66 cm
Product dimensions
Net Weight (Product, kg)
46 kg
Product Depth
60 cm
Product Height
81 cm
Product Width
60 cm
Vendor information
Brand Name
Lanview
Warranty
5 Year(s)
Weight & dimensions
Size (imperial)
19 "
View AllClose
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded alminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.
Features
Cable entry point
Yes
Castor wheels
No
Cooling type
Passive
Frame type
Closed
Front door construction
Steel
International Protection (IP) code
IP55
Key lock
Yes
Material
Steel
Mounting hole shape
Round
Preassembled
Yes
Product colour
White
Rack capacity
16U
Rack rails
Yes
Removable back door
No
Removable side panels
No
Type
IP55 Outdoor Rack
Other features
Dimensions (WxDxH)
600x600x810 mm
Package dimensions
Depth (package,cm)
66 cm
Gross Weight (Package, kg)
46.51 kg
Height (package,cm)
105 cm
Width (package,cm)
66 cm
Product dimensions
Net Weight (Product, kg)
46 kg
Product Depth
60 cm
Product Height
81 cm
Product Width
60 cm
Vendor information
Brand Name
Lanview
Warranty
5 Year(s)
Weight & dimensions
Size (imperial)
19 "
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
