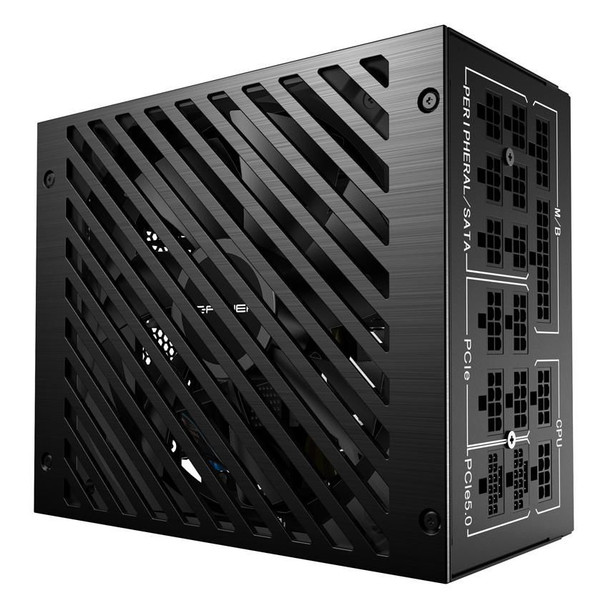

LC-POWER LC1200P V3.0 Power Supply Unit 1200 W 20+4 LC1200P V3.0

The LC1200P V3.0 is an 80 PLUS� PLATINUM certified, fully modular ATX power supply, which offers your system high stability and performance.

Design



Cooling type



Active


Fan diameter



13.5 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Package dimensions



Depth (package,cm)



29.5 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



22.5 cm


Width (package,cm)



12 cm


Packaging content



Cables included



PATA, PCIe, SATA


Performance



80 PLUS certification



80 PLUS Platinum


ATX version



3.0


Power supply unit (PSU) form factor



ATX


Supported motherboard form factors



ATX


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


EPS power connector (4+4 pin)



Yes


EPS power connector (8-pin)



Yes


Motherboard power cable length



65 cm


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



6


Number of SATA power connectors



20


PCI Express power connectors (12+4 pin)



2


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power cable length



500, 800


Peripheral (Molex) power connectors (4-pin)



2


SATA power cable length



500, 650, 800, 950


Power



AC input frequency



47 - 60 Hz


AC input voltage



110 - 240 V


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Efficiency



92 %


Max output current (+12V)



100 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



18 cm


Product Height



15 cm


Product Width



8.6 cm


Technical details



Sustainability certificates



CE, TUV


Sustainability compliance



Yes


Warranty period



3 year(s)


Vendor information



Brand Name


LC-POWER


Warranty



1 Year(s)
