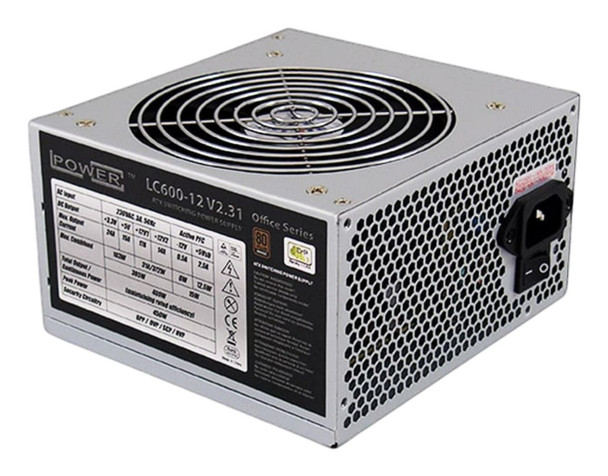

LC-POWER LC600-12 V2.31 LC600-12 V2.31 LC600-12 V2.31

- 450W max. / peak
- 80 PLUS� BRONZE 230V EU certified
- Efficiency up to 89,14%
- Standby consumption: 0,16W
- 120mm fan
- 1x PCI-Express 6 pin, 1x PCI-Express 6+2 pin
- Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

Design



Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Grey


Other features



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



1.44 kg


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.31


Certification



T�V, CE


Power supply unit (PSU) form factor



ATX


Ports & interfaces



ATX power connector (20+4 pin)



Yes


CPU power connector (4+4 pin)



Yes


Floppy drive power connector



2


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



3


Number of SATA power connectors



6


PCI Express power connectors (6+2 pin)



1


PCI Express power connectors (6-pin)



1


Power



AC input frequency



50 Hz


AC input voltage



230 V


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



6 Watt


Efficiency



89.14 %


Input current



3 A


Max output current (+12V1)



17 A


Max output current (+12V2)



14 A


Max output current (+3.3V)



24 A


Max output current (+5V)



15 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.5 A


Peak power



450 Watt


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Over voltage, Short circuit, Under voltage


Total power



400 Watt


Product dimensions



Net Weight (Product, kg)



1.3399999999999999 kg


Product Depth



14 cm


Product Height



8.5 cm


Product Width



15 cm


Vendor information



Brand Name


LC-POWER


Warranty



1 Year(s)
