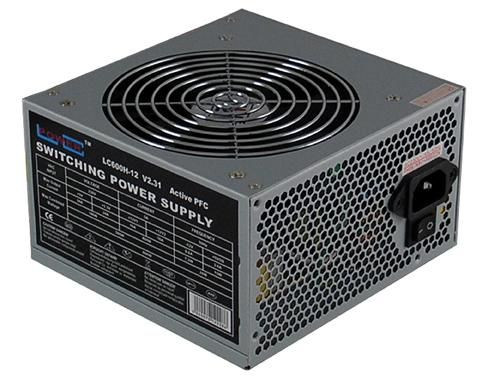

LC-POWER LC600H-12 V2.31 LC600H-12 V2.31 LC600H-12 V2.31

The OFFICE SERIES by LC-POWER offers a good price-performance ratio: thanks to its 120mm fan, the LC600H-12 V2.31 lets you experience a stress-free and silent work in your office as well as at home. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its honey-comb styled ventilation grille on its back. The power supply features all relevant connectors of the office sector.

600W max. / peak

120mm fan

1x PCI-Express 6 pin & 1x PCI-Express 6+2 pin

Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Black


Other features



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.8 kg


Performance



ATX version



2.31


Certification



CE


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



CPU power connector (4+4 pin)



Yes


Floppy drive power connector



2


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



3


Number of SATA power connectors



6


PCI Express power connectors (6+2 pin)



1


PCI Express power connectors (6-pin)



1


Power



Max output current (+12V1)



20 A


Max output current (+12V2)



20 A


Max output current (+3.3V)



24 A


Max output current (+5V)



24 A


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Over voltage, Short circuit, Under current


Total power



600 Watt


Product dimensions



Net Weight (Product, kg)



0.75 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


LC-POWER


Warranty



1 Year(s)
