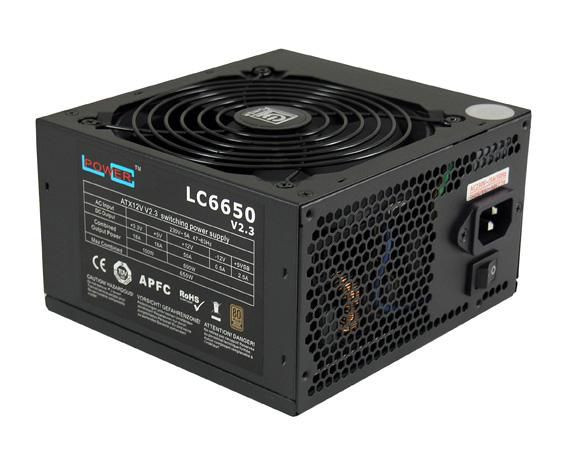

LC-POWER LC6650 V2.3 Power Supply Unit 650 W 20+4 LC6650 V2.3

The legendary SUPER SILENT SERIES by LC-POWER offers the optimum price-performance ratio: thanks to its high-value 120mm fan, the LC6650 V2.3 lets you experience a stress-free and super-silent work in your office as well as at home. Despite the low sound level, the power supply offers an excellent cooling capacity for your system thanks to its honeycomb styled ventilation grille on its back.

The power supply features all current connectors of the office and mid-range sector. Besides current mainboards you can connect several SATA and PATA hard disk drives respectively optical drives. A graphic card can be added due to the PCI-Express V2.0 connector.

The state-of-the-art energy saving technology decreases the power consumption in standby mode (<0,5W) and increases the efficiency of the power supply to >88%!

Design



Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.3


Certification



CE, T�V


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


CPU power cable length



45 cm


CPU power connector (4+4 pin)



Yes


Floppy disk drive cable length



55 cm


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power cable length



55 cm


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



3


Number of SATA power connectors



5


PCI Express connector



Yes


PCI Express power connectors (6+2 pin)



2


SATA power cable length



550, 650, 750


Power



AC input frequency



47 - 63 Hz


AC input voltage



230 V


Combined power (+12V)



600 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Efficiency



88 %


Input current



5 A


Max output current (+12V)



50 A


Max output current (+3.3V)



18 A


Max output current (+5V)



18 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.5 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit, Under voltage


Total power



650 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


LC-POWER


Warranty



1 Year(s)
