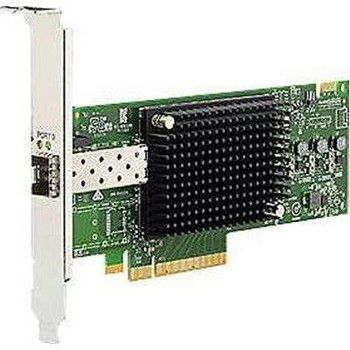

Lenovo 01CV830-RFB DCG TopSeller Emulex 16Gb 01CV830-RFB

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.

The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane�, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink� diagnostics through Emulex OneCommand� Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.

Design



Component for



Server


Hot-Plug support



Yes


Hot-swap



Yes


Internal



Yes


LED indicators



Y, Yes


Mean time between failures (MTBF)



10000000 Hour


Product colour



Black, Green, Silver


Rack capacity



2U


Rack mounting



Yes


Recommended usage



Server


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Full duplex



Yes


Maximum data transfer rate



16000 Mbit/s


Maximum operating distance



150 m


Web-based management



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-20 - 85 �C


Other features



Dell E-Value Code



ATZU


Harmonized System (HS) code



85176990


PCI-SIG* SR-IOV Capable



Yes


Package dimensions



Depth (package,cm)



21.9 cm


Gross Weight (Package, kg)



0.318 kg


Height (package,cm)



5.4 cm


Width (package,cm)



18.9 cm


Packaging content



Mounting brackets included



Yes


Packaging data



Low-profile bracket



Yes


Mounting brackets included



Yes


Quantity



1


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



FC, SFP+


Fiber ports quantity



1


Host interface



PCIe


Interface



Fiber


PCI version



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



16.8 cm


Product Height



6.9 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0


Other operating systems supported



VMware vSphere ESXi


Server operating systems supported



Windows Server 2012, Windows Server 2012 R2


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
