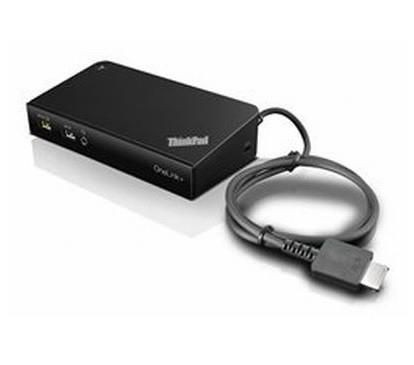

Lenovo 40A40090IT ThinkPad OneLink+ Dock EU 40A40090IT

The ThinkPad OneLink+ Dock, powered by Lenovo�s revolutionary OneLink+ technology, transforms your new ThinkPad into a full-featured machine for the office or at home. Not only does the new convenient OneLink+ connector deliver super-fast data transfers with USB 3.0 and up to Ultra High Definition (UHD) video, but it also charges your notebook, mobile phone and tablet while you work or play!

Unlike USB docks, the OneLink+ Dock delivers video with no compression, no drivers and no impact on image quality and notebook performance. Simply connect your notebook with the ThinkPad OneLink+ Dock to connect to power, the Internet and workplace accessories through a convenient single connector. Expect nothing short of outstanding value with connections for two external displays, a keyboard, mouse and printer. It also comes with a ThinkPad 90 W slim-tip AC adapter.

The docking station is equipped with a stereo/microphone combination audio port and two USB 3.0 ports on the front panel, with one of these being an "always (power) on" port for mobile device charging. In addition, the rear panel has two USB 2.0 ports and two USB 3.0 ports, enabling maximum device connectivity. The OneLink+ Dock also comes with a 10/1000 Gigabit Ethernet port, one VGA port and two DisplayPort 1.2 ports for up to three video outputs* with a maximum resolution of 4K2K**. For security, the dock can be secured via a cable lock.

With all these great features, the ThinkPad OneLink+ Dock actually takes up less desk space than other typical docking stations!

Features and Benefits:- A single OneLink+ cable enables all docking functions while delivering continuous power, allowing you to boost your productivity in no time
- Up to 4k video output allows you to enjoy a vivid video experience with your brand new ThinkPad Ultrabook
- Power button on the dock mirrors the system power button
- Gigabit Ethernet (10/100/1000) with Boot over LAN support on all ThinkPad OneLink+ systems

Compatible Systems:ThinkPad Yoga 460, ThinkPad Yoga 14, ThinkPad P40 Yoga, ThinkPad Yoga 260, ThinkPad X1 Carbon (4th Gen), ThinkPad X1 Yoga, ThinkPad X1 Tablet with Productivity Module.
For the latest compatible systems, please visit the Accessories Compatibility Guide (OCM).

Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Package dimensions



Gross Weight (Package, kg)



0.9 kg


Performance



Brand compatibility



Lenovo


Card reader integrated



No


Compatibility



ThinkPad Yoga 460, ThinkPad Yoga 14, ThinkPad P40 Yoga, ThinkPad Yoga 260, ThinkPad X1 Carbon (4th Gen), ThinkPad X1 Yoga, ThinkPad X1 Tablet with Productivity Module


Product colour



Black


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DisplayPorts quantity



2


Microphone in



No


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.8 kg


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
