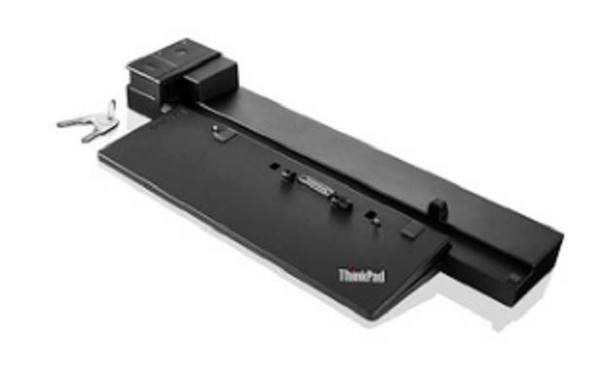

Lenovo 40A50230DK ThinkPad Workstation Dock DK 40A50230DK

The completely redesigned and supercharged ThinkPad Workstation Dock with included ThinkPad 230W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation Dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver free video quality.

With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.

Features and Benefits:
� 6 x USB 3.0, one supports always-on USB charging

� 10/1000 Gigabit Ethernet, supports enterprise manageability

� 2 x DisplayPort 1.2*

� 1 x DVI-D*

� 1 x HDMI 1.4*

� 1 x VGA*

� 1 x Stereo/Mic Combo Audio Port

� Driver-free, perfect video quality

� Security Lock conveniently secures both your notebook and your dock to your desk with a single key

� Physical rear alignment for a perfect dock every time

� Smaller desktop footprint vs Series 3 docking stations

� Comes with ThinkPad AC adapter (230W)


Note:
*Workstation dock is capable of supporting up to 4k2k(3840x2160)@60Hz via either 1 of 2 DP ports, or supporting dual 4k2k@30Hz via 2 DP ports. The actual video output on the dock is based on system video performance, as the video signal is passing through from the system to the Workstation dock.
Some of the video ports have exclusive use and are also dependent on the docked ThinkPad configuration.

For detailed information, please visi

Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 43 �C


Package dimensions



Gross Weight (Package, kg)



0.8 kg


Packaging content



AC adapter included



Yes


Performance



Brand compatibility



Lenovo


Cable lock slot



Yes


Card reader integrated



No


Certification



AS / NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC


Compatibility



ThinkPad


Product colour



Black


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Docking


DisplayPorts quantity



2


DVI-D ports quantity



1


HDMI ports quantity



1


HDMI version



1.4


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



6


VGA (D-Sub) ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.7000000000000001 kg


Product Depth



16.54 cm


Product Width



40.22 cm


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
