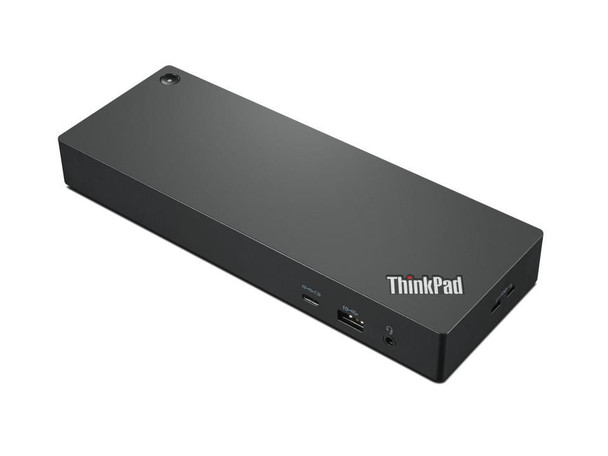

Lenovo 40B00300US Notebook Dock/Port Replicator 40B00300US

Premium Thunderbolt� 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, Upto 230W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.

Audio



Built-in speaker(s)



No


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



19.5 cm


Gross Weight (Package, kg)



2.47 kg


Height (package,cm)



8.5 cm


Width (package,cm)



27 cm


Packaging content



AC adapter included



Yes


Cables included



AC


Manual



Yes


Warranty card



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Cable lock slot



Yes


Card reader integrated



No


Certification



cULus, FCC, ICES, NOM


Data transfer rate



40 Gbit/s


HD type



8K Ultra HD


LED indicators



Y, Yes


Maximum digital resolution



7680 x 4320 Pixels


Maximum refresh rate



30 Hz


Number of displays supported



4


Product colour



Black, Red


VESA mounting



Yes


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


HDMI ports quantity



1


HDMI version



2.1


Host interface



Thunderbolt 4


Microphone in



No


Thunderbolt 4 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



4


USB Power Delivery



Yes


USB Power Delivery up to



230 Watt


Power



Output current



15 A


Output voltage



20 V


Power consumption (max)



230 Watt


Power source type



AC


Power supply



300 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



8 cm


Product Height



3 cm


Product Width



22 cm


Software



Windows operating systems supported



Windows 10


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
