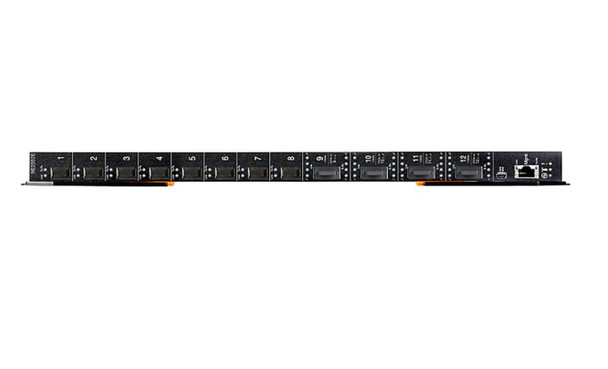

Lenovo 4SG7A08868 Network Switch Managed L2/L3 4SG7A08868

The Lenovo ThinkSystem NE2552E Flex Switch is an embedded switch module for Flex System that is designed for the data center to provide 10 Gb/25 Gb/50 Gb Ethernet server connectivity with 50 Gb/100 Gb Ethernet upstream links. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the numerous high-availability software features help provide high availability for business sensitive traffic.

Data transmission



MAC address table



103000 entries


Number of static routes



128


Static route



Yes


Design



Product colour



Black


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2/L3


Switch type



Managed


Multicast features



Multicast support



Yes


Network



10G support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3u, IEEE 802.3x


Number of VLANs



4095


Port mirroring



Yes


VLAN support



Yes


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Mean time between failures (MTBF)



300000 Hour


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



31.7 cm


Product Height



3 cm


Product Width



40.1 cm


Protocols



Management protocols



SNMP V1, V2, V3


Routing protocols



BGP, OSPF


Security



Access Control List (ACL)



Yes


DHCP features



DHCP relay


IGMP snooping



Yes


Security algorithms



SSH


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
