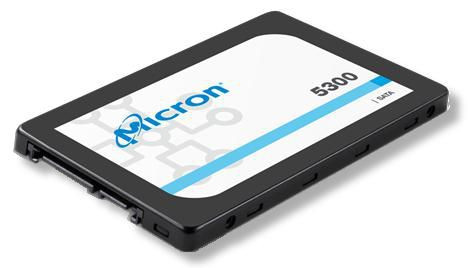

Lenovo 4XB7A17078 ThinkSystem 2.5" 5300 4XB7A17078

The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

Features



Component for



Server/workstation


Data transfer rate



6 Gbit/s


Hardware encryption



Yes


Hot-swap



Yes


Interface



Serial ATA III


Mean time between failures (MTBF)



3000000 Hour


Memory type



3D TLC NAND


NVMe



No


Random read (4KB)



95000 IOPS


Random write (4KB)



30000 IOPS


Read latency



175 �s


Read speed



540 MB/s


Security algorithms



256-bit AES


SSD capacity



2 TB


SSD form factor



2.5"


Write latency



300 �s


Write speed



520 MB/s


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Vibration resistance



3.13 G


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.21 kg


Height (package,cm)



6.3 cm


Width (package,cm)



12.7 cm


Power



Power consumption (read)



3 Watt


Power consumption (write)



3.8 Watt


Product dimensions



Net Weight (Product, kg)



0.181 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
