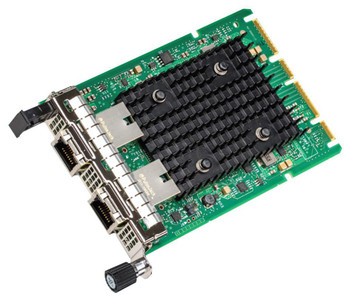

Lenovo 4XC7A08278 Network Card Internal 4XC7A08278

The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.

Design



Certification



EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1


Component for



Server/workstation


Internal



Yes


Network



Cabling technology



10GBase-T


Ethernet interface type



10 Gigabit Ethernet


Ethernet LAN



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 55 °C


Storage relative humidity (H-H)



5 - 80 %


Storage temperature (T-T)



-20 - 65 °C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


PCI version



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



11.5 cm


Product Width



7.6 cm


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
