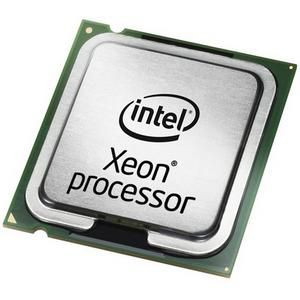

Lenovo 81Y6705-RFB Intel Xeon E5607 4C 2.26GHz 81Y6705-RFB

Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.

Features and benefits of the Intel® Xeon® processor 5600 series

Intelligent performance
Boost performance by up to 15 times over single-core servers with processors that intelligently adapt to your workload.

Intel® Turbo Boost Technology
Dynamically and automatically maximizes server application performance by increasing core frequencies, enabling faster speeds for specific threads, and mega-tasking workloads.

Intel® QuickPath Technology
Scalable shared memory architecture with high-speed, point-to-point processor interconnects, plus larger caches and larger memory for two-processor servers.

Large memory capacity
Up to 18 DIMM slots with up to 144 GB of main memory and up to 12 DIMM slots with up to 192 GB of memory support higher performance for your data intensive applications.

8 MB shared L3 cache with enhanced smart cache
Inclusive shared L3 cache increases application performance by reducing traffic to the processor cores.

Intel® I/O Acceleration Technology (Intel® I/OAT), with Intel® QuickData Technology
Moves data more efficiently through Intel® Xeon® processor-based workstations and server platforms for fast, scalable, and reliable network performance.

AES new instructions
Delivers robust encryption without needing additional appliances or increased performance overhead, improving CPU performance for encryption.

Automated energy efficiency
Get 45 percent more performance? than previous generations without increasing power consumption with servers based on next-generation 32nm process technology.

Integrated power gates
Allow idling cores to be reduced to near-zero power, independent of other cores, reducing server idle power consumption.

Automated low-power states
Automatically put processor, memory, and I/O controller into the lowest available power states that will meet the current workload while minimizing performance impact.

Flexible virtualization
Combine servers from multiple generations into the same virtualized server pool to extend failover, load balancing, and disaster recovery capability.

Intel® Virtualization Technology? (Intel® VT)
- Enables more operating systems and software to run in today’s virtual environments;
- Developed with virtualization software providers to enable greater functionality and compatibility compared to non-hardware-assisted virtual environments;
- Get the performance and headroom to improve the average virtualization performance over previous generations of two-processor servers.

Intel® Trusted Execution Technology? Provides enhanced virtualization security through hardware-based resistance to malicious software attacks at launch.

Features



Bandwidth



26214.4 MB/s


Market segment



Server


Package dimensions



Gross Weight (Package, kg)



0.52 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.750 - 1.350 V


Processor



Box



No


Component for



Server/workstation


CPU multiplier (bus/core ratio)



17


Processor base frequency



2.26 GHz


Processor cache



8 MB


Processor cache type



L3


Processor code



SLBZ9


Processor cores



4


Processor family



Intel® Xeon® 5000 Sequence


Processor frequency



2.26 GHz


Processor front side bus



1066 MHz


Processor lithography



32 nm


Processor model



E5607


Processor operating modes



64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



4


Stepping



B1


System bus rate



4.8 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.750 - 1.350 V


Product dimensions



Net Weight (Product, kg)



0.42000000000000004 kg


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
