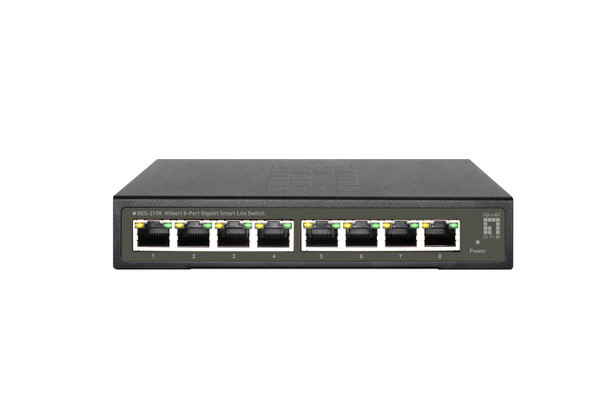

LevelOne 52091203101 Hilbert 8-Port Gigabit Smart 52091203101

The LevelOne GES-2108 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2108 delivers 8 (10M/100M/1G) RJ45 ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2108 provides high HW performance and environment flexibility for Enterprises. GES-2108 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



4000 entries


Number of queues



4


Packet buffer memory



1.5 MB


Switching capacity



16 Gbit/s


Design



LED indicators



Link, Power


Product colour



Black


Rack mounting



No


Logistics data



Master (outer) case gross weight



18.7 kg


Master (outer) case height



39 cm


Master (outer) case length



33 cm


Master (outer) case net weight



700 g


Master (outer) case width



55 cm


Products per master (outer) case



36 pc(s)


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Number of VLANs



32


Port mirroring



Yes


Rate limiting



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



20.4 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



12.2 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



5.2 cm


Width (package,cm)



26.4 cm


Packaging data



AC adapter included



Yes


Quick start guide



Yes


Performance



Fanless



Yes


Flash memory



2 MB


Mean time between failures (MTBF)



43800 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



8


Power



DC input voltage



12 V


Input current



1 A


Power consumption (max)



6 Watt


Power source



DC


Power supply included



Yes


Surge protection



Yes


Surge protection voltage



8 kV


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



9.5 cm


Product Height



2.9 cm


Product Width



16 cm


Security



IGMP snooping



Yes


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Technical details



Master (outer) cases per pallet (air)



16 pc(s)


Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



170.4 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
