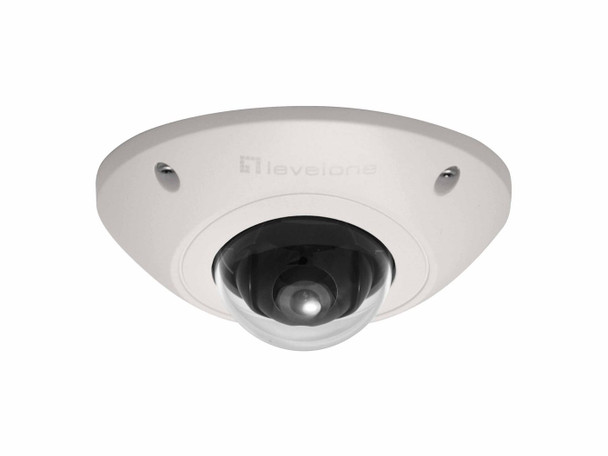

LevelOne FCS-3073 FIXED DOME NETWORK CAMERA 2MP FCS-3073

The LevelOne FCS-3073 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3073 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Camera



Camera shutter speed



1 - 1/10000 Second


Field of view (FOV) angle



78 �


Minimum illumination



0.001 lx


Design



Form factor



Dome


IK code



IK10


International Protection (IP) code



IP66


Mounting type



Ceiling


Product colour



White


Protection features



Vandal proof


Weatherproof



Yes


Image sensor



Optical sensor size



1/2.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Fixed focal length



6 mm


Focus adjustment



2.0


Number of lenses



1


Logistics data



Harmonized System (HS) code



85258900


Master (outer) case height



56.8 cm


Master (outer) case length



28.8 cm


Master (outer) case width



34.5 cm


Products per master (outer) case



24 pc(s)


Management features



Reset button



Yes


Network



Bluetooth



No


Cabling technology



10/100Base-T(X)


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3u


Number of users



20 user(s)


Quality of Service (QoS) support



Yes


Supported network protocols



IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS


Wi-Fi



No


Night vision



Night vision



No


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-30 - 60 �C


Package dimensions



Depth (package,cm)



13.4 cm


Gross Weight (Package, kg)



0.5 kg


Height (package,cm)



10.8 cm


Width (package,cm)



13.4 cm


Packaging content



Number of cameras



1


Resource CD



Yes


Screws included



Yes


Performance



Certification



CE, FCC, ONVIF


Connectivity technology



Wired


Day/night mode



Yes


Placement supported



Indoor & outdoor


PTZ control



Yes


RoHS compliance



Yes


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Power consumption (typical)



3.5 Watt


Power over Ethernet (PoE)



Yes


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



11.1 cm


Product Height



8.2 cm


Product Width



11.1 cm


Security



Active tampering alarm



Yes


HTTPS encryption



Yes


IP address filtering



Yes


Motion sensor



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, SD


Maximum memory card size



16 GB


System requirements



Windows operating systems supported



Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Video



Back Light Compensation (BLC)



Yes


Flip & mirror



Yes


Frame rate



30 fps


Full HD



Yes


Image quality adjustment



Brightness, Contrast, Saturation, Sharpness


Maximum resolution



1920 x 1080 Pixels


Noise reduction



Yes


Portrait mode



Yes


Privacy masking



Yes


Supported graphics resolutions



1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)


Supported video modes



1080p


Text caption overlay



Yes


Time stamp overlay



Yes


Total megapixels



2 MP


Video compression formats



H.264, M-JPEG


Video formats supported



AVI


Video streaming



Yes
