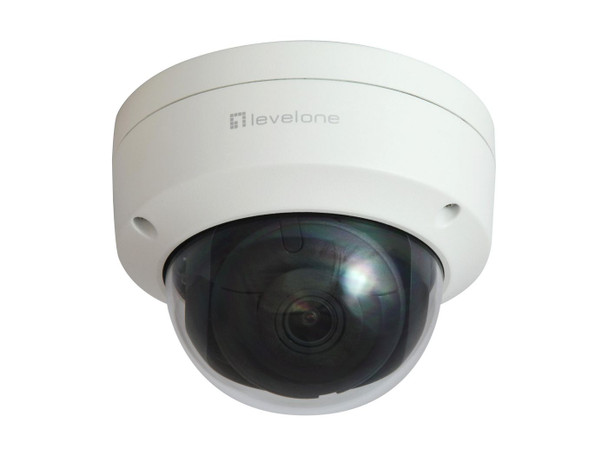

LevelOne FCS-3402 Gemini Fixed Dome Ip Network FCS-3402

The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Camera



Camera shutter speed



1/3 - 1/100000 Second


Field of view (FOV) angle



86 �


Lens viewing angle, diagonal



102 �


Lens viewing angle, vertical



46 �


Design



Form factor



Dome


IK code



IK10


International Protection (IP) code



IP67


LED indicators



Power


Mounting type



Ceiling/wall


Product colour



White


Protection features



Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof


Weatherproof



Yes


Image sensor



Optical sensor size



1/2.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Digital zoom



8 x


Fixed focal length



4 mm


Focus adjustment



2.0


Number of lenses



1


Zoom capability



Yes


Logistics data



Harmonized System (HS) code



85258900


Master (outer) case gross weight



608 g


Master (outer) case height



11.1 cm


Master (outer) case length



11.1 cm


Master (outer) case width



11.1 cm


Products per master (outer) case



24 pc(s)


Management features



Reset button



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u


Number of users



32 user(s)


Supported network protocols



TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



30 m


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-30 - 60 �C


Other features



Browser supported



IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+


Package dimensions



Depth (package,cm)



11.1 cm


Gross Weight (Package, kg)



0.53 kg


Height (package,cm)



10.8 cm


Width (package,cm)



13.4 cm


Packaging content



Number of cameras



1


Resource CD



Yes


Screws included



Yes


Performance



Certification



CE, FCC


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


Placement supported



Indoor & outdoor


Type



IP security camera


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Headphone outputs



1


Microphone in



Yes


Terminal block port



Yes


Power



Power consumption



400 mA


Power consumption (max)



5 Watt


Power consumption (Power over Ethernet (PoE))



7 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



0.41 kg


Product Depth



8.2 cm


Security



Active tampering alarm



Yes


Anti-flicker



Yes


Digital watermark



Yes


Heartbeat



Yes


Mirror



Yes


Password protection



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSDHC, MicroSDXC


System requirements



Mobile operating systems supported



Android, iOS


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Video



Back Light Compensation (BLC)



Yes


Frame rate



30 fps


Image quality adjustment



Brightness, Contrast, Saturation, Sharpness


Maximum resolution



1920 x 1080 Pixels


Noise reduction



Yes


Noise reduction technology



3D noise reduction


Privacy masking



Yes


Region of Interest (ROI) encoding



Yes


Supported graphics resolutions



320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)


Total megapixels



2 MP


Video formats supported



H.264, H.265, M-JPEG


Weight & dimensions



Diameter



11.1 cm
