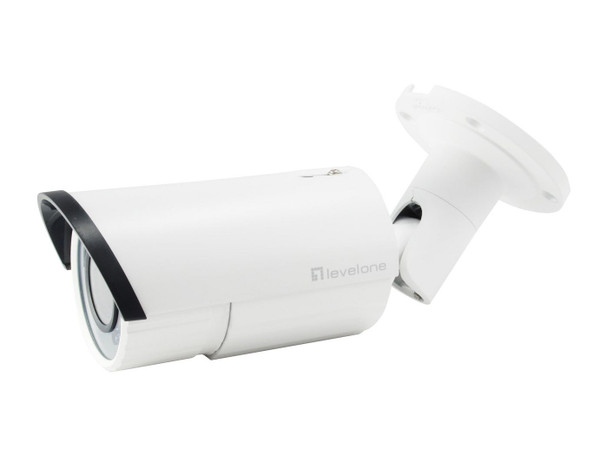

LevelOne FCS-5060 2-MPIXEL FIXED OUTDOOR CAMERA FCS-5060

The LevelOne FCS-5060 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP66 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5060 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Audio



Voice codecs



G.711, G.722.1, G.726


Camera



Camera shutter speed



1/3 - 1/10000 Second


Field of view (FOV) angle



106 °


Design



Form factor



Bullet


International Protection (IP) code



IP66


Mounting type



Ceiling/wall


Product colour



White


Image sensor



Optical sensor size



1/2.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Focal length range



2.8 - 12 mm


Focus



Motorized


Focus adjustment



1.4


Number of lenses



1


Optical zoom



4 x


Zoom capability



Yes


Logistics data



Harmonized System (HS) code



85258900


Master (outer) case gross weight



11.94 kg


Master (outer) case height



50 cm


Master (outer) case length



40 cm


Master (outer) case width



49 cm


Products per master (outer) case



9 pc(s)


Management features



Cable management



Yes


Reset button



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3u


Number of users



20 user(s)


Streaming method



Multicast


Supported network protocols



IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast


Wi-Fi



No


Night vision



LED type



IR


Night vision



Yes


Night vision distance



30 m


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



30 - 60 °C


Package dimensions



Depth (package,cm)



15.6 cm


Gross Weight (Package, kg)



1.326 kg


Height (package,cm)



15.5 cm


Width (package,cm)



38.6 cm


Packaging content



Number of cameras



1


Resource CD



Yes


Performance



Certification



CE,FCC


Connectivity technology



Wired


Infrared (IR) cut-off filter



Yes


Placement supported



Indoor & outdoor


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Composite video out



1


Ethernet LAN (RJ-45) ports



1


Terminal block port



Yes


Power



DC output voltage



12


Power consumption (max)



7.5 Watt


Power consumption (typical)



5.5 Watt


Power over Ethernet (PoE)



Yes


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



1.2 kg


Product Depth



25.86 cm


Product Height



9.5 cm


Product Width



10.5 cm


Security



Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



SD, SDHC, SDXC


Maximum memory card size



128 GB


System requirements



Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64


Technical details



Iris



Yes


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Video



Back Light Compensation (BLC)



Yes


Flip & mirror



Yes


Frame rate



30 fps


Image quality adjustment



Brightness, Contrast, Saturation, Sharpness


Maximum resolution



1920 x 1080 Pixels


Noise reduction



Yes


Portrait mode



Yes


Privacy masking



Yes


Supported graphics resolutions



1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)


Text caption overlay



Yes


Time stamp overlay



Yes


Total megapixels



2 MP


Video compression formats



H.264, H.264+, M-JPEG


Video formats supported



MP4


Video streaming



Yes
