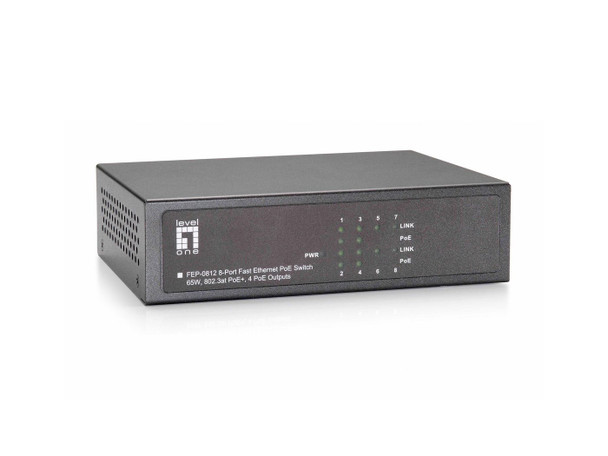

LevelOne FEP-0812 Switch 4x 10/100 MBit + 4x PoE FEP-0812

The FEP-0812 is a 8-port 10M/100M Fast Ethernet Switch with one uplink port plus 4 ports of Power over Ethernet capability. Per PoE port is power supply up to 30W. The total PoE power budget is 65W. It is an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.

Four ports on the FEP-0812 are PoE enabled making it an ideal solution for most office users that have PoE enabled devices located around the office. These products can include a mixture of PoE IP Phones, PoE wifi APs and PoE IP Cam. It is the perfect answer for offices that are upgrading their office equipment and LAN infrastructure to include PoE capability. The switch automatically detects IEEE 802.3at/af compliant device connected and provides power and data over a single cable to these devices.

The FEP-0812 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.

For instant error detection, the FEP-0812 is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.

- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Total PoE power budget: 65W, up to 30W per port
- Internal power supply

Data transmission



Forwarding rate



0.1488 Mpps


MAC address table



1024 entries


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148000 pps


Store-and-forward



Yes


Switching capacity



1.6 Gbit/s


Design



Certification



FCC, CE, RoHS


Housing material



Metal


LED indicators



Activity, LAN, PoE, Power


Product colour



Black


Rack mounting



Yes


Stackable



No


Logistics data



Harmonized System (HS) code



85176990


Multicast features



Multicast MAC address table



1000 entries


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



8 cm


Gross Weight (Package, kg)



2 kg


Height (package,cm)



23.5 cm


Width (package,cm)



14.5 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Performance



Buffer size



64 KB


Harmonized System (HS) code



85176990


Plug and Play



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



65 Watt


Power protection features



Over current, Short circuit


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



4


Total Power over Ethernet (PoE) budget



65 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



4.4 cm


Product Height



16 cm


Product Width



12.2 cm


Vendor information



Brand Name


LevelOne


Warranty



2 Year(s)
