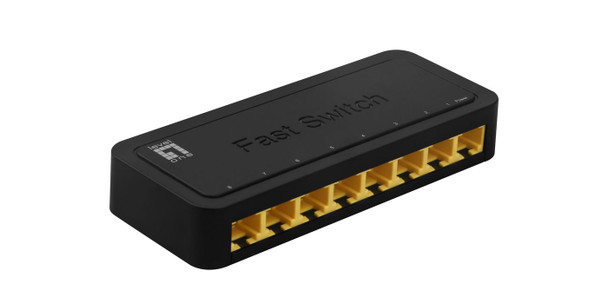

LevelOne FEU-0812 Fast Ethernet 10/100 Black FEU-0812

The LevelOne FEU-0812 is a wire-speed, non-blocking networking device that provides 8 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

Data transmission



MAC address table



1000 entries


Packet buffer memory



1.19 MB


Design



Certification



CE RoHS


LED indicators



Activity, Link, Power


Product colour



Black


Rack mounting



No


Stackable



No


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-T


Full duplex



Yes


Half duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



8 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



8 cm


Width (package,cm)



14.5 cm


Packaging data



AC adapter included



Yes


Performance



Fanless



Yes


Plug and Play



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power connector



DC-in jack


Power



DC input voltage



5 V


Input current



0.55 A


Power consumption (typical)



1.7 Watt


Power source



DC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



5.23 cm


Product Height



2 cm


Product Width



13.07 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
