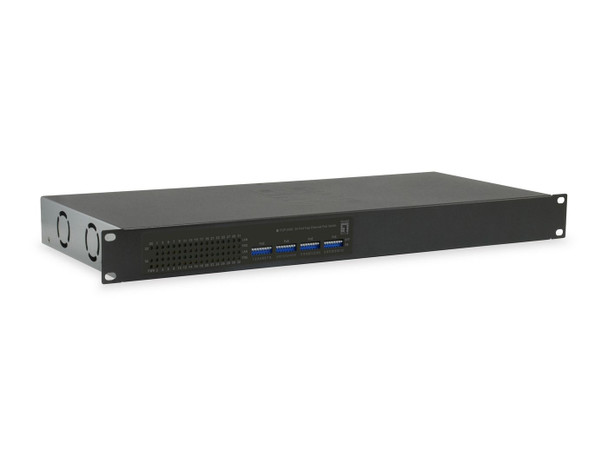

LevelOne FGP-3400W630 34-Port Fast Ethernet Poe FGP-3400W630

The LevelOne FGP-3400 series are unmanaged PoE switches with 32 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 250/380/500/630/760W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-3400 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Data transmission



Jumbo frames



16000


Jumbo frames support



Yes


MAC address table



32000 entries


Packet buffer memory



8 MB


Packet forwarding rate (1 Gbps)



1488000 pps


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148800 pps


Switching capacity



10.4 Gbit/s


Design



Certification



FCC Class A, CE


LED indicators



LAN, PoE, Power, Uplink


On/off switch



Yes


Product colour



Black


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



19.5 kg


Master (outer) case height



28 cm


Master (outer) case length



55.5 cm


Master (outer) case width



51 cm


Products per master (outer) case



5 pc(s)


Management features



Switch type



Unmanaged


Network



10G support



No


Cable types supported



Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Depth (package,cm)



53.4 cm


Gross Weight (Package, kg)



2.6 kg


Height (package,cm)



9.5 cm


Width (package,cm)



25.5 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Rack mount kit



Yes


Rubber feet



Yes


Performance



Mean time between failures (MTBF)



74000 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



32


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Fast Ethernet (copper) ports quantity



32


Gigabit Ethernet (copper) ports quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



32


Total Power over Ethernet (PoE) budget



630 Watt


Product dimensions



Net Weight (Product, kg)



2 kg


Product Depth



48 cm


Product Height



4.5 cm


Product Width



19.5 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
