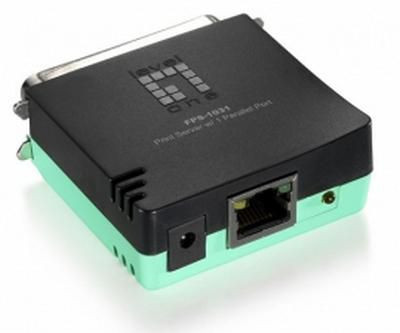

LevelOne FPS-1031 Print Server 1P1RJ45 LevelOne FPS-1031

Product Overview
The LevelOne FPS-1031 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a DB-36-pin male bi-directional Centronic port that connects to parallel printers.

Multi OS and Network Printing Protocol Support
The FPS-1031 is a print server with 1 parallel port that supports Windows ME, 2000, XP and Vista operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).

Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1031 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.

Easy Installation Wizard
The LevelOne FPS-1031 is easily configurable using a Web Browser or the Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the Windows set-up program or the Web based user interface.

- Parallel print server for network print sharing
- USB 2.0 interface
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems

Certificates



Certification



CE, FCC Class B


Features



DHCP client



Yes


Internal



No


IPP support



Yes


LED indicators



Activity, Link, Power, Status


Product colour



Black, Green


Network



Ethernet LAN data rates



10, 100


Network connection type



Ethernet LAN


Networking standards



IEEE 802.3, IEEE 802.3u


Operational conditions



Operating altitude



0 - 80 m


Operating relative humidity (H-H)



0 - 50 %


Storage relative humidity (H-H)



0 - 70 %


Storage temperature (T-T)



-5 - 65 �C


Package dimensions



Depth (package,cm)



21.9 cm


Gross Weight (Package, kg)



2.37 kg


Height (package,cm)



6.6 cm


Width (package,cm)



15.2 cm


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Parallel ports quantity



1


Product dimensions



Net Weight (Product, kg)



1.12 kg


Product Depth



5.1 cm


Product Height



2.5 cm


Product Width



5.5 cm


Protocols



Supported network protocols



TCP/IP, IPX, NetBEUI, AppleTalk, LPR, SMB over TCP/IP, RAW


Web-based management



Yes


Software



Linux operating systems supported



Y, Yes


Mac operating systems supported



Mac OS 8.1, Mac OS 8.5, Mac OS 8.6, Mac OS 9.0, Mac OS 9.1, Mac OS 9.2


Other operating systems supported



Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x


Windows operating systems supported



Windows 2000, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


LevelOne


Warranty



2 Year(s)
