Levelone

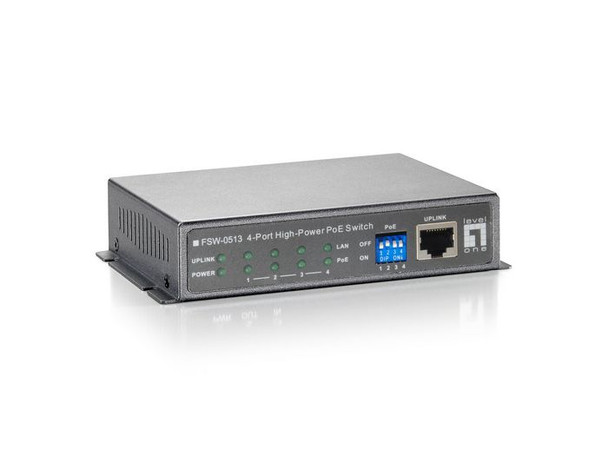

LevelOne FSW-0513 04P DT LevelOne F0513 10/100 P FSW-0513
(No reviews yet)
Write a Review
- UPC:
- 4015867154564
- MPN:
- FSW-0513
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.
With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513(Z) in a 19� chassis (POC-6000) for a large-scale rack-mount PoE solution.
Power Protection
FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.
- Provides flexibility of 4 x 10/100BASE-TX PoE ports
- IEEE 802.3af PoE compliant to simplify deployment and installation
- PoE on/off control per port by dip switches
- Auto-detection and protection of non-standard PoE devices
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 120W, up to 52W per port
Data transmission
MAC address table
1024 entries
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
14800 pps
Store-and-forward
Yes
Switching capacity
1 Gbit/s
Design
Certification
FCC, CE
LED indicators
Uplink, LAN, PoE, Power
On/off switch
Yes
Product colour
Black, Grey
Rack mounting
No
Stackable
No
Logistics data
Harmonized System (HS) code
85176990
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable types supported
Cat5
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Depth (package,cm)
14.8 cm
Gross Weight (Package, kg)
3.01 kg
Height (package,cm)
8 cm
Width (package,cm)
23.2 cm
Packaging data
AC adapter included
Yes
Cables included
AC
Manual
Yes
Performance
Buffer size
48 KB
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack
Power
Output current
2.15 A
Output voltage
56 V
Power consumption (typical)
120 Watt
Power protection features
Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
1
Power over Ethernet (PoE) power per port
52 Watt
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
1.72 kg
Product Depth
9 cm
Product Height
2.8 cm
Product Width
12 cm
Vendor information
Brand Name
LevelOne
Warranty
2 Year(s)
