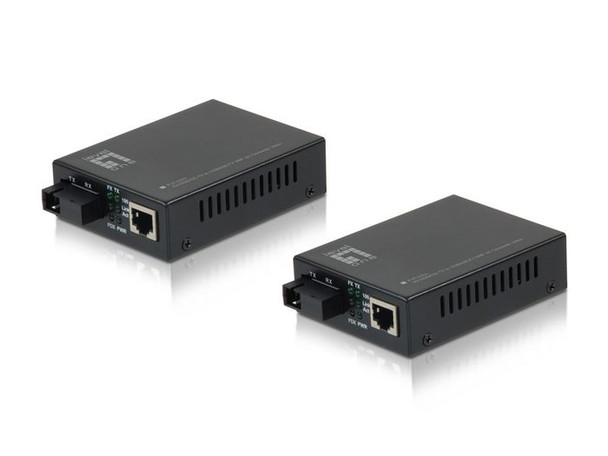

LevelOne FVT-2202 RJ45 TO SC BIDI FAST ETH MEDIA FVT-2202

FVT-2202 Fast Ethernet Media Converter Set is ideally designed for connecting two copper wire networks over long distances via fiber optical communication. Featuring Bi-directional (BIDI) fiber optic interface with SC connector allows data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.

Transfers data from 10/100Base-TX copper to fiber interfaces

Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology

Dip switches for customized configuration

Supports low-time lag transmission

Supports the transmission of extra-long packets up to 1.6KB

-10�C to 55�C operating temperature range

Single-mode fiber with BIDI SC connector for transmission of up to 20km

Design



Certification



CE, FCC


Internal



No


LED indicators



Activity, Link, Power


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



16.19 kg


Master (outer) case height



39 cm


Master (outer) case length



36 cm


Master (outer) case width



48 cm


Products per master (outer) case



36 pc(s)


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Cable types supported



Cat5


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Duplex system



Full, Half


Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Fiber ethernet cabling technology



100BASE-FX


Flow control support



Yes


Link Loss Carry Forward (LLCF) supported



Yes


Link Loss Return (LLR) supported



Yes


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Store-and-forward



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-10 - 55 �C


Package dimensions



Depth (package,cm)



12.5 cm


Gross Weight (Package, kg)



0.914 kg


Height (package,cm)



5.5 cm


Width (package,cm)



23.5 cm


Packaging content



AC adapter included



Yes


Quick installation guide



Yes


Performance



Fiber cable diameters supported (core/cladding)



8.3/125, 9/125, 10/125


Maximum transfer distance



20000 m


Wavelength-division multiplexing (WDM)



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SX


Fiber ports quantity



1


Power



Input current



1 A


Input voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.42 kg


Product Depth



7 cm


Product Height



2.5 cm


Product Width



9.4 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
