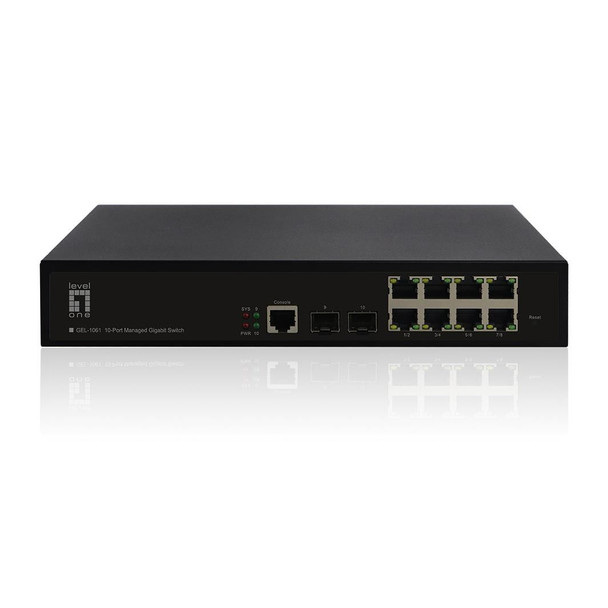

LevelOne GEL-1061 10-PORT L2 MANAGED GIGABIT GEL-1061

The LevelOne GEL-1061 is an intelligent 10-Port L2 managed gigabit switch with 8 RJ45 ports and 2 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-1061 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL), Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



8000 entries


Number of queues



8


Packet buffer memory



1 MB


Store-and-forward



Yes


Switching capacity



20 Gbit/s


Throughput



14.9 Mpps


Design



Certification



CE classA, FCC, UL, VCCI, BSMI


Form factor



19U


LED indicators



Activity, Link, Power


Product colour



Black


Rack mounting



Yes


Reset button



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Traffic classification



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Broadcast storm control



Yes


Cable length detection



Yes


Flow control support



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Port mirroring



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



Port-based VLAN, Tagged VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



27.297 BTU/h


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-10 - 50 �C


Storage temperature (T-T)



-40 - 85 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-X, 1000BASE-X


Package dimensions



Depth (package,cm)



25.5 cm


Gross Weight (Package, kg)



2 kg


Height (package,cm)



8.2 cm


Width (package,cm)



34.5 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Resource CD



Yes


Performance



Fanless



No


Flash memory



16 MB


Harmonized System (HS) code



85176990


Internal memory



128 MB


Maximum data transfer rate



4.1 Mbit/s


Mean time between failures (MTBF)



1284936 Hour


Minimum system requirements



CE RoHS


Plug and Play



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Fiber optic connector



SFP


Installed SFP modules quantity



2


Power connector



AC-in jack


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



15 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.8 kg


Product Depth



18.1 cm


Product Height



4.4 cm


Product Width



27 cm


Protocols



Management protocols



HTTP/TFTP/FTP, RMON/SNMP


Security



Access Control List (ACL)



Yes


BPDU filtering/protection



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


MAC address filtering



Yes


SSH/SSL support



Yes


Static port security



Yes


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
