Levelone

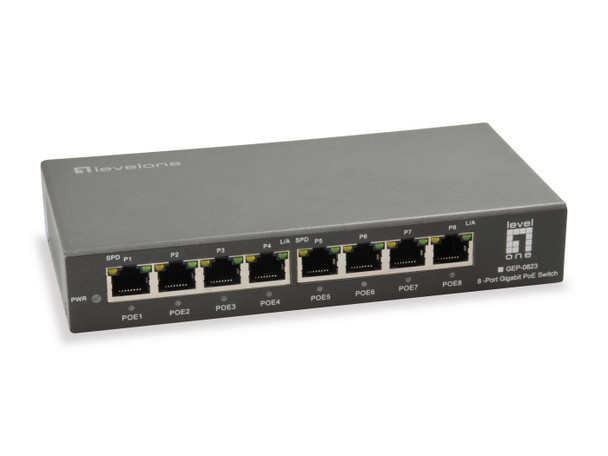

LevelOne GEP-0823 8-Port Gigabit Poe Switch. GEP-0823
(No reviews yet)
Write a Review
- UPC:
- 4015867207444
- MPN:
- GEP-0823
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The LevelOne GEP-0823 is an 8-port Gigabit Ethernet PoE switch that provides Power over Ethernet on all eight of its ports. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 120W. It is the ideal solution when office and home users are using a combination of PoE and non-PoE devices.
The GEP-0823\'s eight PoE-enabled ports make it an ideal solution for office users who use PoE-enabled devices and already want to power a larger number of PoE devices. These products can be a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade their existing PoE infrastructure to Gigabit speed. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
The GEP-0823 also enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockade-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This switch also supports the N-Way auto negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0823 is equipped with a complete set of LEDs to help monitor and troubleshoot the network.
Data transmission
Jumbo frames
9126
Jumbo frames support
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Switching capacity
16 Gbit/s
Design
Certification
CE,FCC
Housing material
Metal
LED indicators
Activity, LAN, Power
Product colour
Black
Stackable
No
Logistics data
Harmonized System (HS) code
85176990
Network
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
-20 - 70 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-20 - 70 �C
Package dimensions
Depth (package,cm)
6 cm
Gross Weight (Package, kg)
1.17 kg
Height (package,cm)
29 cm
Width (package,cm)
23 cm
Packaging data
AC adapter included
Yes
Quick start guide
Yes
Performance
Buffer size
8 KB
Internal memory
1 MB
Mean time between failures (MTBF)
30000 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
Input current
2.5 A
Input voltage
52 V
Power consumption (typical)
10 Watt
Power protection features
Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 Watt
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
0.9 kg
Product Depth
3 cm
Product Height
17.6 cm
Product Width
8.6 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
View AllClose
The GEP-0823\'s eight PoE-enabled ports make it an ideal solution for office users who use PoE-enabled devices and already want to power a larger number of PoE devices. These products can be a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade their existing PoE infrastructure to Gigabit speed. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
The GEP-0823 also enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockade-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This switch also supports the N-Way auto negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0823 is equipped with a complete set of LEDs to help monitor and troubleshoot the network.
Data transmission
Jumbo frames
9126
Jumbo frames support
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Switching capacity
16 Gbit/s
Design
Certification
CE,FCC
Housing material
Metal
LED indicators
Activity, LAN, Power
Product colour
Black
Stackable
No
Logistics data
Harmonized System (HS) code
85176990
Network
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
-20 - 70 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-20 - 70 �C
Package dimensions
Depth (package,cm)
6 cm
Gross Weight (Package, kg)
1.17 kg
Height (package,cm)
29 cm
Width (package,cm)
23 cm
Packaging data
AC adapter included
Yes
Quick start guide
Yes
Performance
Buffer size
8 KB
Internal memory
1 MB
Mean time between failures (MTBF)
30000 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
Input current
2.5 A
Input voltage
52 V
Power consumption (typical)
10 Watt
Power protection features
Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 Watt
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
0.9 kg
Product Depth
3 cm
Product Height
17.6 cm
Product Width
8.6 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
