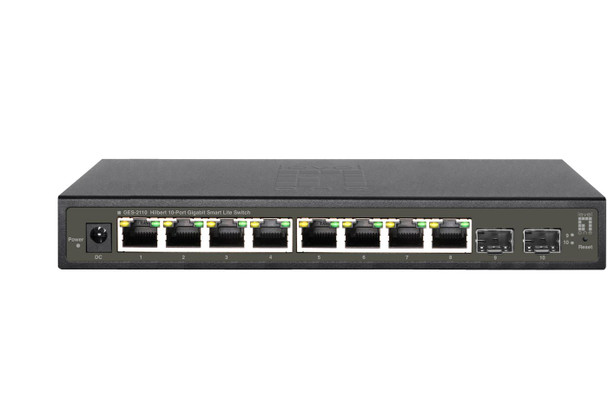

LevelOne GES-2110 Hilbert 10-Port Gigabit Smart GES-2110

The LevelOne GES-2110 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2110 delivers 8 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2110 provides high HW performance and environment flexibility for Enterprises. GES-2110 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



8000 entries


Number of queues



4


Packet buffer memory



1.5 MB


Switching capacity



20 Gbit/s


Design



Certification



UKCA, FCC Class A


LED indicators



Activity, Link


Product colour



Black


Rack mounting



No


Logistics data



Master (outer) case gross weight



12.2 kg


Master (outer) case height



40 cm


Master (outer) case length



32 cm


Master (outer) case net weight



750 g


Master (outer) case width



54 cm


Products per master (outer) case



12 pc(s)


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



32


Port mirroring



Yes


Rate limiting



Yes


Virtual LAN features



Tagged VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



34.12 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



17.2 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



9.3 cm


Width (package,cm)



29 cm


Packaging data



AC adapter included



Yes


Quick start guide



Yes


Performance



Fanless



Yes


Flash memory



2 MB


Mean time between failures (MTBF)



43800 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Combo SFP ports quantity



2


Gigabit Ethernet (copper) ports quantity



8


Power



DC input voltage



12 V


Input current



1 A


Power consumption (max)



10 Watt


Power source



DC


Power supply included



Yes


Surge protection



Yes


Surge protection voltage



8 kV


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



12.1 cm


Product Height



3.5 cm


Product Width



22.5 cm


Security



IGMP snooping



Yes


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Technical details



Master (outer) cases per pallet (air)



16 pc(s)


Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



174.4 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
