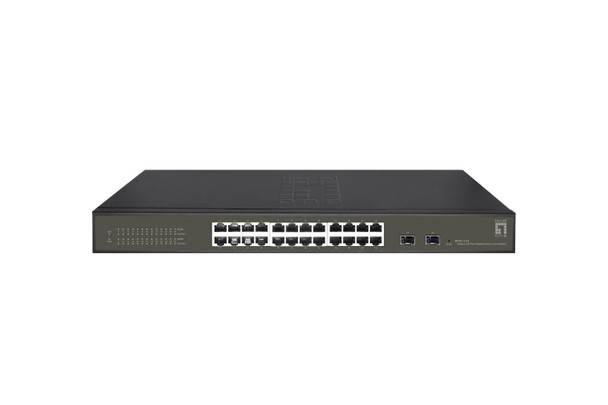

LevelOne GES-2126 Hilbert 26-Port Gigabit Smart GES-2126

The LevelOne GES-2126 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2126 delivers 24 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2126 provides high HW performance and environment flexibility for Enterprises. GES-2126 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



8000 entries


Number of queues



4


Packet buffer memory



4.1 MB


Switching capacity



52 Gbit/s


Design



Certification



UKCA, FCC Class A


LED indicators



Activity, Link, Power, System


Product colour



Black


Rack mounting



Yes


Logistics data



Master (outer) case gross weight



10.55 kg


Master (outer) case height



29 cm


Master (outer) case length



36 cm


Master (outer) case net weight



750 g


Master (outer) case width



51.5 cm


Products per master (outer) case



4 pc(s)


Management features



Quality of Service (QoS) support



Yes


Switch layer



L2


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



32


Port mirroring



Yes


Rate limiting



Yes


Virtual LAN features



Port-based VLAN, Tagged VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



61.42 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



27 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



8.5 cm


Width (package,cm)



50.3 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Rack mount kit



Yes


Performance



Fanless



Yes


Flash memory



2 MB


Mean time between failures (MTBF)



43800 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



24


SFP module slots quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



18 Watt


Power source



AC


Surge protection



Yes


Surge protection voltage



8 kV


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



19 cm


Product Height



4.45 cm


Product Width



44 cm


Security



IGMP snooping



Yes


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Technical details



Master (outer) cases per pallet (air)



20 pc(s)


Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



159.4 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
