Levelone

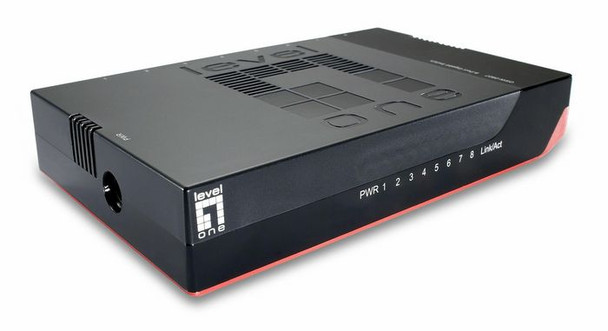

LevelOne GSW-0807 8xRJ45 mCon 1 GBit GSW-0807
- UPC:
- 0878742003654
- MPN:
- GSW-0807
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.
Power Saving Features
The GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.
Compact and Stylish Design
The stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comes
with 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs.
Easy to Use
The GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
- 8 Gigabit Ethernet ports
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
- Quick and easy installation
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
8192 entries
Packet buffer memory
1 MB
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148000 pps
Store-and-forward
Yes
Switching capacity
16 Gbit/s
Design
Certification
CE, RoHS, FCC
LED indicators
Activity, Link, Power
Product colour
Black, Red
Rack mounting
No
Stackable
No
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Package dimensions
Depth (package,cm)
9.2 cm
Gross Weight (Package, kg)
0.55 kg
Height (package,cm)
9.2 cm
Width (package,cm)
14.2 cm
Packaging data
AC adapter included
Yes
Quick start guide
Yes
Performance
Flash memory
1024 MB
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack
Power
Input current
1 A
Power consumption (typical)
3 Watt
Power supply included
No
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
0.45000000000000007 kg
Product Depth
8.9 cm
Product Height
2.7 cm
Product Width
14.95 cm
Vendor information
Brand Name
LevelOne
Warranty
2 Year(s)
