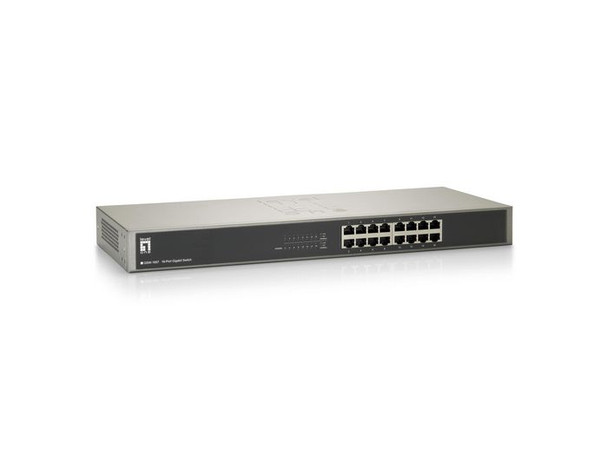

LevelOne GSW-1657 16P DT/19 LevelOne G1657 10/10 GSW-1657

Gigabit Speeds: Take Your Data to the Next Level
GSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Standards-based
GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.

Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Data transmission



Jumbo frames



10000


Jumbo frames support



Yes


MAC address table



8192 entries


Packet buffer memory



0.5 MB


Packet forwarding rate (1 Gbps)



1488000 pps


Packet forwarding rate (10 Mbps)



14880 pps


Packet forwarding rate (100 Mbps)



148000 pps


Store-and-forward



Yes


Switching capacity



32 Gbit/s


Design



Certification



FCC, CE


LED indicators



Activity, Link


Product colour



Black, Grey


Rack mounting



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



11.75 kg


Master (outer) case height



24 cm


Master (outer) case length



50 cm


Master (outer) case width



40.5 cm


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Cable types supported



Cat5, Cat6, Cat7


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 °C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-40 - 70 °C


Package dimensions



Depth (package,cm)



48.6 cm


Gross Weight (Package, kg)



6.05 kg


Height (package,cm)



7.7 cm


Width (package,cm)



22.4 cm


Packaging data



Cables included



AC


Mounting brackets included



Yes


Quick start guide



Yes


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



0.6 A


Power consumption (typical)



13.3 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



4.87 kg


Product Depth



44 cm


Product Height



4.4 cm


Product Width



14 cm


Vendor information



Brand Name


LevelOne


Warranty



2 Year(s)
