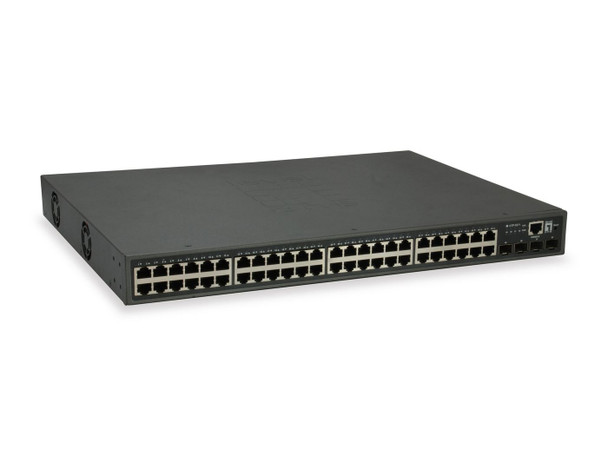

LevelOne GTP-5271 Managed L3 Gigabit Ethernet GTP-5271

The GTP-5271 is LevelOne latest generation of 52-Port L3 Lite Managed Gigabit PoE Switch, with 4 10G SFP+ port connectivity. offers powerful L2 and L3 Lite features, better PoE functionality with 400W PoE power budget and usability, The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

The GTP-5271 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-5271 48-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Data transmission



Forwarding rate



130.944 Mpps


Jumbo frames



12000


Jumbo frames support



Yes


MAC address table



16000 entries


Packet buffer memory



512 MB


Store-and-forward



Yes


Switching capacity



336 Gbit/s


Design



Certification



CE


Housing material



Metal


LED indicators



Link, PoE, Power


Product colour



Grey


Rack mounting



Yes


Reset button



Yes


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case gross weight



11.29 kg


Master (outer) case height



40.8 cm


Master (outer) case length



20.5 cm


Master (outer) case width



53.5 cm


Products per master (outer) case



2 pc(s)


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Multicast features



Multicast Listener Discovery (MLD) snooping



v1/v2


Multicast support



Yes


Network



10G support



Yes


Broadcast storm control



Yes


Link aggregation



Yes


Network virtualization technologies



Q-in-Q tunneling


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4096


Port mirroring



Yes


QinQ implementation



Selective QinQ


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



136.48 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



39 cm


Gross Weight (Package, kg)



5.88 kg


Height (package,cm)



8 cm


Width (package,cm)



59.6 cm


Packaging data



Cables included



AC


Quick start guide



Yes


Rack mount kit



Yes


Rubber feet



Yes


Performance



Firmware upgradeable



Yes


Flash memory



512 MB


Internal memory



32 MB


Mean time between failures (MTBF)



534057 Hour


Noise level



45 dB


Operating system installed



Linux


Telnet



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RJ-45


Gigabit Ethernet (copper) ports quantity



48


Power connector



AC-in jack


SFP+ module slots quantity



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



6 A


Input voltage



100 - 240 V


Power consumption (max)



473.7 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



48


Power over Ethernet (PoE) power per port



30 Watt


Total Power over Ethernet (PoE) budget



400 Watt


Product dimensions



Net Weight (Product, kg)



4.52 kg


Product Depth



33 cm


Product Height



4.45 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


IPv4 & IPv6 features



IPv6 Telnet


Supported network protocols



IPv4/IPv6


Security



Access Control List (ACL)



Yes


Authentication



Guest VLAN, Web-based authentication


Authentication type



RADIUS


DHCP features



DHCP relay, DHCP server, DHCP snooping


DoS attack prevention



Yes


IGMP proxy



Yes


IGMP snooping



Yes


Password protection



Yes


Queue scheduling algorithms



Priority queuing (PQ), Weighted Round Robin (WRR)


Security algorithms



SNMPv3


SSH/SSL support



Yes


Sustainability



Sustainability certificates



RoHS


Sustainability compliance



Yes


Technical details



Master (outer) cases per pallet (air)



28 pc(s)


Pallet gross length



80 cm


Pallet gross width



120 cm


Pallet height (air)



183.6 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
